Safety Door Switches - Combination Kit
Part Number
Configured Part Number is shown.
Product Overview
Safety door lock, safety door key, installation latch, compatible with Omron and other brand products
Electromagnetic/mechanical safety door lock
★ Rear unlock key not provided
Safety door switch
Safety door latch
*The mounting holes are compatible with the Omron D4SL-N series. The D4SL-NK1S operating key must be purchased separately. Please pay attention to actual installation tolerances.
* The mounting holes are compatible with the Omron D4NS series. Please pay attention to actual installation tolerances.
Operating key model
*Compatible with Omron D4NS series. Please pay attention to actual installation tolerances.
Electromagnetic/mechanical safety door lock
E-MSM2A series safety door lock  |
★ Rear unlock key not provided
Safety door switch
E-MSMD4 series safety door lock  |
Safety door latch
E-MSMSKF10-LK (kit includes T type key)  |
* The mounting holes are compatible with the Omron D4NS series. Please pay attention to actual installation tolerances.

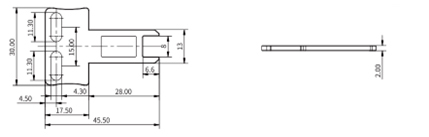

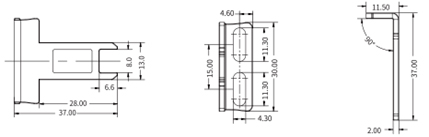

Operating key model
E-MSMD2-K1  T type E-MSMD2-K2  L type |
Specification Overview
| Safety Door Latch Combination Model | Safety Door Lock Model | Safety Door Latch (Kit Includes T-type Key) | Operating Key Model | Contact Type | Locking Method | Material | Door Lock Holding Force | Rated Operating Voltage/ Current | Safety Level |
|---|---|---|---|---|---|---|---|---|---|
| E-MSM2AFG-LK | E-MSM2AFG | E-MSMSKF10-LK  | E-MSMD2-K1 T type | 1NC/1NO+1NC/1NO | 24 V DC electromagnetic locking/ mechanical release | Safety door lock material: PA66 Safety door latch: Aluminum alloy (includes 2 operating keys) Operating key material: SUS201 | 1300N | 24 V DC, 200 mA | IEC61508 SIL2 & TUV EN60947-5-1 |
| E-MSM2AFA-LK | E-MSM2AFA | Mechanical locking/ 24 V DC electromagnetic release | |||||||
| E-MSM2CFG-LK | E-MSM2CFG | 2NC+1NC/1NO | 24 V DC electromagnetic locking/ mechanical release | ||||||
| E-MSM2DFG-LK | E-MSM2DFG | 2NC+2NC | |||||||
| E-MSM2DFA-LK | E-MSM2DFA | Mechanical locking/ 24 V DC electromagnetic release | |||||||
| E-MSM2TFG-LK | E-MSM2TFG | 3NC+1NC | 24 V DC electromagnetic locking/ mechanical release | ||||||
| E-MSM2OFG-LK | E-MSM2OFG | 1NC+3NC | |||||||
| E-MSMD4CF-LK | E-MSMD4CF | 2NC/1NO | Mechanical locking | 50N | 24 V/2 A | EN60947-5-1 | |||
| E-MSMD4DF-LK | E-MSMD4DF | 3NC |
E-MSM2A Series
E-MSMD4 Series
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| E-MSM2AFA-LK |
| E-MSM2AFG-LK |
| E-MSM2CFG-LK |
| E-MSM2DFA-LK |
| E-MSM2DFG-LK |
| E-MSM2OFG-LK |
| E-MSM2TFG-LK |
| E-MSMD4CF-LK |
| E-MSMD4DF-LK |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Rated operating current (A) | Contact Type | Locking Method | Operating Key | Usage Method | Safety Door Lock Locking Force |
|---|---|---|---|---|---|---|---|---|---|---|
MYR 675.20 | 1 Piece(s) | Available | 6 Day(s) | 200 mA | 1NC/1NO+1NC/1NO | Mechanical locking / 24 V DC electromagnetic release | Model includes T-type key | Electromagnetic/mechanical door lock, operating key, safety door latch kit | 1300N | |
MYR 675.20 | 1 Piece(s) | Available | 6 Day(s) | 200 mA | 1NC/1NO+1NC/1NO | 24 V DC electromagnetic locking / mechanical release | Model includes T-type key | Electromagnetic/mechanical door lock, operating key, safety door latch kit | 1300N | |
MYR 675.20 | 1 Piece(s) | Available | 6 Day(s) | 200 mA | 2NC+1NC/1NO | 24 V DC electromagnetic locking / mechanical release | Model includes T-type key | Electromagnetic/mechanical door lock, operating key, safety door latch kit | 1300N | |
MYR 675.20 | 1 Piece(s) | Available | 6 Day(s) | 200 mA | 2NC+2NC | Mechanical locking / 24 V DC electromagnetic release | Model includes T-type key | Electromagnetic/mechanical door lock, operating key, safety door latch kit | 1300N | |
MYR 675.20 | 1 Piece(s) | Available | 6 Day(s) | 200 mA | 2NC+2NC | 24 V DC electromagnetic locking / mechanical release | Model includes T-type key | Electromagnetic/mechanical door lock, operating key, safety door latch kit | 1300N | |
MYR 675.20 | 1 Piece(s) | Available | 6 Day(s) | 200 mA | 1NC+3NC | 24 V DC electromagnetic locking / mechanical release | Model includes T-type key | Electromagnetic/mechanical door lock, operating key, safety door latch kit | 1300N | |
MYR 675.20 | 1 Piece(s) | Available | 6 Day(s) | 200 mA | 3NC+1NC | 24 V DC electromagnetic locking / mechanical release | Model includes T-type key | Electromagnetic/mechanical door lock, operating key, safety door latch kit | 1300N | |
MYR 421.64 | 1 Piece(s) | Available | 6 Day(s) | 2A | 2NC/1NO | Mechanical locking | E-MSMD2-K1 (horizontal installation) | Mechanical safety door lock, operating key kit | 50N | |
MYR 421.64 | 1 Piece(s) | Available | 6 Day(s) | 2A | 3NC | Mechanical locking | E-MSMD2-K1 (horizontal installation) | Mechanical safety door lock, operating key kit | 50N |
Loading...
Basic Information
| Rated Operating Voltage(V) | DC24V | Safety Door Lock Conduit Port Size | M20 × 1.5 waterproof connector | Safety Door Lock Head Material | PA66 |
|---|---|---|---|---|---|
| Safety Door Lock Body Material | PA66 | Operating Key Material | SUS201 | Safety Door Latch Material | Aluminum alloy + PC material door handle |
Specification/Dimensions
-
Rated operating current(A)
- 2A
- 200 mA
-
Contact Type
- 1NC/1NO+1NC/1NO
- 1NC+3NC
- 2NC/1NO
- 2NC+1NC/1NO
- 2NC+2NC
- 3NC
- 3NC+1NC
-
Locking Method
- 24 V DC electromagnetic locking / mechanical release
- Mechanical locking / 24 V DC electromagnetic release
- Mechanical locking
-
Operating Key
- E-MSMD2-K1 (horizontal installation)
- Model includes T-type key
-
Usage Method
- Electromagnetic/mechanical door lock, operating key, safety door latch kit
- Mechanical safety door lock, operating key kit
-
Safety Door Lock Locking Force
- 50N
- 1300N
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 6 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
