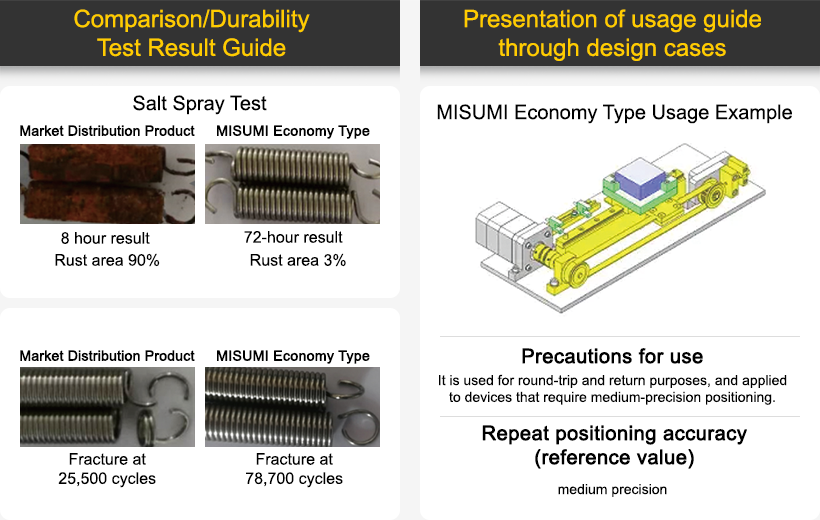

Comparison/Durability Test Results

Salt Fog Test

• Market Distribution Product 8 Hours Results: 90% Rust
• Economy Product 72 Hours Results: 3% Rust

Life Test

• Market Distribution Product, 250,000 Cycles (Break)
• Economy Product, 787,000 Cycles (Break)

Usage Guide through Design Cases

Misumi Economy Usage Example

Usage Precautions Used for reciprocating and return applications, and applied to devices requiring medium-precision positioning. Repeated Positioning Accuracy (Reference Value) Medium Precision
