[Clean & Pack] Shaft - One End Tapped with Wrench Flats
![[Clean & Pack] Shaft - One End Tapped with Wrench Flats](http://content.misumi-ec.com/image/upload/t_product_main//v1/p/jp/product/series/110310639539/110310639539_001_20240726160555.jpg?$product_main$)
Click this image to zoom it.
Move the mouse over the image to zoom
Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
■Part Number for Clean & Pack Products
| ·Degreasing (Anti-rust single packing) | : Part Number SL-□□ |
| ·Precision cleaning (Degassing double packing) | : Part Number SH-□□ |
| ·Electrolytic polishing + precision cleaning (Degassing double packing) | : Part Number SHD-□□ |
| Product Part Number | Cleaning Method | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Process |
| SL-□□ | Degreasing | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| SH-□□ | Precision cleaning | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| SHD-□□ | Electrolytic polishing + precision cleaning | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
(i)Caution
- Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product. Please be careful about the application location and storage environment.
Part Number
Configured Part Number is shown.
[ ! ] For plated products, the surface roughness of D part is
; and for unplated products, it is
.
[ ! ] The dimension tolerances for L, SC, and H conform to JIS B 0405 class m.
[ ! ] Low temperature black chrome plated products made of SUS440C or 13Cr stainless steel have identification grooves.
[ ! ] Cross-drilled hole areas may be out of O.D. tolerances due to annealing-induced deformation.
[ ! ] Hard chrome plating is applied after surface treatment of the base material, so there is no plating on the machined area.
[ ! ] Annealing required for wrench flats machining and shaft end machined area threading (effective thread length + approx. 10 mm) may lower hardness.
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the
details of degreasing and precision cleaning shown at the bottom of the specification table.
Packaging Example
Cleaning Effectiveness / Recommended Environment for Use

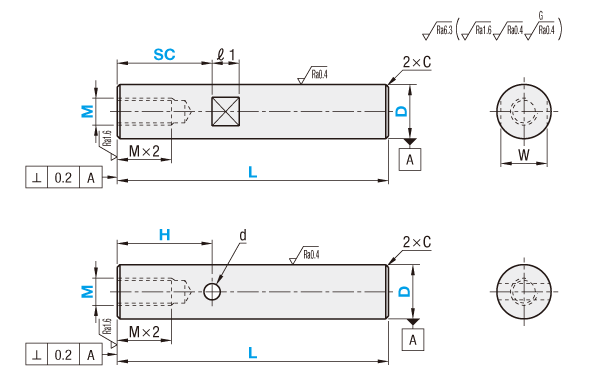

Wrench Flats Type Shafts with Cross-Drilled Hole (8 ≤ D ≤ 30, L ≤ 500)
[ ! ] For plated products, the surface roughness of D part is
; and for unplated products, it is .[ ! ] The dimension tolerances for L, SC, and H conform to JIS B 0405 class m.
| Type | [ M ] Material | [ H ] Hardness | [ S ] Surface Treatment | Cleaning Method | ||||||
| With Wrench Flats | With Cross-Drilled Hole | |||||||||
| D Tolerance f8 | D Tolerance g6 | D Tolerance h5 | Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||||
| SL-PSSFGC | - | - | - | SUS304 | - | Hard Chrome Plating Plating Hardness: HV750 or more Plating Thickness: 10 µ or more | Degreasing | General environment | Anti-rust packing | General environment |
| SH-PSSFGC | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | ||||||
| - | SL-SSFJC | SL-SSFUC | SL-SSFHC | SUS440C or 13Cr Stainless Steel | Induction Hardening SUJ2 Equivalent 58 HRC or more SUS440C or 13Cr Stainless Steel 56 HRC or more | - | Degreasing | General environment | Anti-rust packing | General environment |
| SH-SSFJC | SH-SSFUC | SH-SSFHC | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | ||||
| - | SL-PSSFJC | SL-PSSFUC | SL-PSSFHC | SUS440C or 13Cr Stainless Steel | Hard Chrome Plating Plating Hardness: HV750 or more Plating Thickness: 5 µ or more | Degreasing | General environment | Anti-rust packing | General environment | |
| SH-PSSFJC | SH-PSSFUC | SH-PSSFHC | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | ||||
| - | SL-RSFJC | - | SL-RSFHC | SUJ2 Equivalent | Low Temperature Black Chrome Plating | Degreasing | General environment | Anti-rust packing | General environment | |
| SH-RSFJC | SH-RSFHC | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | |||||
| - | SL-RSSFJC | - | SL-RSSFHC | SUS440C or 13Cr Stainless Steel | Degreasing | General environment | Anti-rust packing | General environment | ||
| SH-RSSFJC | SH-RSSFHC | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | |||||
[ ! ] Cross-drilled hole areas may be out of O.D. tolerances due to annealing-induced deformation.
[ ! ] Hard chrome plating is applied after surface treatment of the base material, so there is no plating on the machined area.
[ ! ] Annealing required for wrench flats machining and shaft end machined area threading (effective thread length + approx. 10 mm) may lower hardness.
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the
details of degreasing and precision cleaning shown at the bottom of the specification table.Specification Table
Part Number | - | L | - | M | - | SC |
SL-PSSFGC10 | - | 200 | - | M5 | - | SC6 |
SH-PSSFGC20 | - | 300 | - | M6 | - | SC10 |
| D Tolerance | |||
| D | f8 | g6 | h5 |
| 6 | -0.010 -0.028 | -0.004 -0.012 | 0 -0.005 |
| 8 | -0.013 -0.035 | -0.005 -0.014 | 0 -0.006 |
| 10 | |||
| 12 | -0.016 -0.043 | -0.006 -0.017 | 0 -0.008 |
| 13 | |||
| 15 | |||
| 16 | |||
| 18 | |||
| 20 | -0.020 -0.053 | -0.007 -0.020 | 0 -0.009 |
| 25 | |||
| 30 | |||
| 35 | -0.025 -0.064 | -0.009 -0.025 | 0 -0.011 |
| 40 | |||
| 50 | |||
■ Wrench Flats Type
[ ! ] The overall length L requires M × 2 + N × 2 ≤ L. When M × 2.5 + 4 ≥ L, tap pilot holes go through.
[ ! ] M ( ) dimension is only available for D Tolerance g6.
| Part Number | L 1 mm Increments | M (Coarse) Selection | SC 1 mm Increments | W | ℓ1 | C | |||||||||||
| Type | D | ||||||||||||||||
| D Tolerance f8 SL-PSSFGC SH-PSSFGC D Tolerance g6 SL-SSFJC SH-SSFJC SL-PSSFJC SH-PSSFJC SL-RSFJC SH-RSFJC SL-RSSFJC SH-RSSFJC D Tolerance h5 SL-SSFUC SH-SSFUC SL-PSSFUC SH-PSSFUC [ ! ] Low Temperature Black Chrome Plated Products D ≤ 30 | 6 | 15 to 800 | 3 | [ ! ] SC+ℓ1 ≤ L [ ! ] SC ≥ 0 | 5 | 8 | 0.5 or Less | ||||||||||
| 8 | 15 to 800 | 3 | 4 | 5 | 7 | ||||||||||||
| 10 | 15 to 800 | 3 | 4 | 5 | 6 | 8 | |||||||||||
| 12 | 15 to 800 | (3) | 4 | 5 | 6 | 8 | 10 | 10 | |||||||||
| 13 | 15 to 800 | (3) | 4 | 5 | 6 | 8 | 11 | ||||||||||
| 15 | 15 to 800 | (3) | 4 | 5 | 6 | 8 | 10 | 13 | |||||||||
| 16 | 16 to 800 | 4 | 5 | 6 | 8 | 10 | 14 | ||||||||||
| 18 | 30 to 800 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | |||||||||
| 20 | 30 to 800 | 4 | 5 | 6 | 8 | 10 | 12 | 17 | 1.0 or Less | ||||||||
| 25 | 35 to 800 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 22 | ||||||||
| 30 | 35 to 800 | 6 | 8 | 10 | 12 | 16 | 20 | 27 | 15 | ||||||||
| 35 | 35 to 800 | 8 | 10 | 12 | 16 | 20 | 24 | 30 | |||||||||
| 40 | 50 to 800 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 20 | ||||||||
| 50 | 65 to 800 | 12 | 16 | 20 | 24 | 30 | 41 | ||||||||||
[ ! ] M ( ) dimension is only available for D Tolerance g6.
■ Shafts with Cross-Drilled Hole Type
[ ! ] The overall length L requires M × 2 + N × 2 ≤ L. When M × 2.5 + 4 ≥ L, tap pilot holes go through.
| Part Number | L 1 mm Increments | M (Coarse) Selection | H 1 mm Increments | d | C | |||||||||
| Type | D | |||||||||||||
| SL-SSFHC SH-SSFHC SL-PSSFHC SH-PSSFHC SL-RSFHC SH-RSFHC SL-RSSFHC SH-RSSFHC | 8 | 15 to 500 | 3 | 4 | 5 | [ ! ] L ≥ H + d/2 + 2 [ ! ]H ≥ M × 2.5 + d/2 + 6 | 3 | 0.5 or Less | ||||||
| 10 | 15 to 500 | 3 | 4 | 5 | 6 | |||||||||
| 12 | 15 to 500 | 3 | 4 | 5 | 6 | 8 | ||||||||
| 13 | 15 to 500 | 3 | 4 | 5 | 6 | 8 | 4 | |||||||
| 15 | 15 to 500 | 3 | 4 | 5 | 6 | 8 | 10 | |||||||
| 16 | 16 to 500 | 4 | 5 | 6 | 8 | 10 | ||||||||
| 18 | 30 to 500 | 4 | 5 | 6 | 8 | 10 | 12 | 6 | ||||||
| 20 | 30 to 500 | 4 | 5 | 6 | 8 | 10 | 12 | 1.0 or Less | ||||||
| 25 | 35 to 500 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 7 | |||||
| 30 | 35 to 500 | 6 | 8 | 10 | 12 | 16 | 20 | |||||||
|
| ||||||||||||||||||||||||||||||||||||||
Alteration Details
· See below for alteration details.
*When selecting multiple alterations, the distance between machined areas should be 2 mm or more.
*When selecting alterations, the distance between wrench flats and a cross-drilled hole should be 2 mm or more.
*Alteration may lower hardness.
| Alterations Code | Alteration Details | Fixed Dimension | Applicable Conditions | Ordering Example | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LKC | Precisely change L dimension and tolerance | · L < 200 >> L ± 0.03 · 200 ≤ L < 500 >> L ± 0.05 · L ≥ 500 >> L ± 0.1 | [ ! ] L Dimension can be specified in 0.1 mm increments | SL-PSSFGC30-250.5-M12-SC10-LKC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FC | Set Screw Flat at One Location |
| [ ! ] FC, E = 1 mm increment [ ! ] D ≤ 30: FC ≤ 5 × D, D ≥ 35: FC ≤ 3 × D [ ! ] E = 0 or E ≥ 2 [ NG ] Not available in combination with WFC | SL-PSSFGC30-250-M12-SC10-FC10-E8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WFC | Set Screw Flats at Two Locations |
| [ ! ] WFC, A, E = 1 mm increment [ ! ] D ≤ 30: WFC ≤ 5 × D, D ≥ 35: WFC ≤ 3 × D [ ! ] A(E) = 0 or A(E) ≥ 2 [ NG ]Cannot be machined coplanarly [ NG ]Not available in combination with FC | SL-PSSFGC30-250-M12-SC10-WFC10-A8-E2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SX | Wrench Flats other than SC Wrench Flats |
| SX = 1 mm increment [ ! ] SC + SX + ℓ1X2 < L [ ! ] SX ≥ 0 [ NG ]Cannot be machined coplanarly | SL-PSSFGC30-250-M12-SC10-SX15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MSC | Change Tapped Thread to Fine Thread |
| [ ! ] Applicable to D = 12 or more [ NG ]Not available in combination with MD | SL-PSSFGC30-250-MSC14-SC10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RC | 90-Deg. Set Screw Flat at One Location |
| [ ! ] Applicable to D = 10 to 30 [ ! ] RC = 1 mm increment [ ! ] RC + b1 ≤ L [ ! ] RC ≥ 2 [ NG ] Not available in combination with WRC | SL-PSSFGC30-250-M12-SC10-RC30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WRC | 90-deg. Set Screw Flats at Two Locations |
| [ ! ] Applicable to D = 10 to 30 [ ! ] WRC = 1 mm increment [ ! ] WRC + b1 ≤ L [ ! ] WRC (Y) ≥ 2 [ NG ]Cannot be machined coplanarly [ NG ]Not available in combination with RC | SL-PSSFGC30-250-M12-SC10-WRC15-Y10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| KC | Keyway at One Location |
 When KC + G ≥ L, keyway is configured as the drawing below. Ex.) | [ ! ] Only applicable to D = 12, 16, 20, 25 and 30 [ ! ] KC, G = 1 mm increment [ ! ] b ≤ G ≤ 30, G ≤ L/3 [ ! ] L > 500: 2 ≤ KC ≤ L/3 L < 500: 2 ≤ KC ≤ 500 [ ! ] M × 2 < KC + F [ NG ]This alteration cannot be applied to any tapped part (M × 2.5 + 4). | SL-PSSFGC30-250-M12-SC10-KC10-G10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MD | Changes the effective length of tapped part to M × 3 | - | [ ! ] Applicable to D = 10 to 30 and M = 6 to 20 [ ! ] One End Tapped: MD × 3.5+4 ≤ L [ NG ] Not available in combination with KC, MSC | SL-PSSFGC30-250-MD12-SC10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Circularity (M), Straightness (K), L Dimension Tolerance, Perpendicularity
■Straightness Measurement Method
Shaft ends are supported on V-blocks and turned 360 degrees
to measure shaft runout using a dial indicator.
1/2 of measured runout is defined as the straightness.
to measure shaft runout using a dial indicator.
1/2 of measured runout is defined as the straightness.
■Circularity M
Shaft Outer Dia. g6·h5 (Hardening)
Unit: mm
| D | Circularity M | |
|---|---|---|
| Over | or Less | |
| 5 | 13 | 0.004 |
| 13 | 20 | 0.005 |
| 20 | 40 | 0.006 |
| 40 | 50 | 0.007 |
Shaft Outer Dia. f8 (without hardening)
Unit: mm
| D | Circularity M | |
|---|---|---|
| Over | or Less | |
| 5 | 10 | 0.011 |
| 10 | 18 | 0.014 |
| 18 | 30 | 0.017 |
| 30 | 50 | 0.020 |
■Straightness K
Shaft Outer Dia. g6·h5 (Hardening)
Unit: mm
| D | L | Straightness K | |
|---|---|---|---|
| 6 to 50 | L ≤ 100 | 0.01 or Less | |
| L > 100 | (L/100) × 0.01 or Less | ||
Shaft Outer Dia. f8 (without hardening)
Unit: mm
| L | Straightness K | |
|---|---|---|
| L ≤ 100 | 0.025 or Less | |
| L > 100 | (L/100) × 0.025 or Less | |
■L Dimension Tolerance
Shaft Outer Dia. g6·h5 (Hardening)
Unit: mm
| L | L Dimension Tolerance | |
|---|---|---|
| Over | or Less | |
| 14 | 30 | ±0.2 |
| 30 | 120 | ±0.3 |
| 120 | 400 | ±0.5 |
| 400 | 1000 | ±0.8 |
| 1000 | 1500 | ±1.2 |
Shaft Outer Dia. f8 (without hardening)
Unit: mm
| L | L Dimension Tolerance | |
|---|---|---|
| Over | or Less | |
| 14 | 30 | ±0.2 |
| 30 | 120 | ±0.3 |
| 120 | 400 | ±0.5 |
| 400 | 1000 | ±0.8 |
| 1000 | 1500 | ±1.2 |
■ Perpendicularity
Notes on Hardening and Surface Treatment
■Reduced Hardness around Machined Areas
· Although processing is performed after the base material is hardened, annealing may lower hardness of the machined area.
*Reduced Hardness: Approximately 10 to 40 HRC

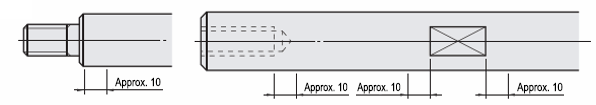

■Reduced Hardness Range
· Approximately 10 mm from the machined area
(Example)
■Machined area where hardness has lowered due to annealing
· Wrench Flats, Keyway, Set Screw Flats, 90-deg. Flats
■Reduced Hardness Condition of Tapped
The conditions for lower hardness for tapped differ depending on the material and selection conditions.
- SUS440C or 13Cr Stainless Steel: The hardness of the tapped part will decrease.
- SUJ2 Equivalent: Under the following conditions, the hardness of the tapped part will decrease.
· When M ≥ D/2, · RC thread, · Two Tapped Hole on End
■Reduced Hardness Range for Shafts with Cross-Drilled Hole
For Shafts with Cross-Drilled Hole, the reduced hardness range by annealing varies depending on the material.
⇒SUJ2 Equivalent: Approximately 20 mm from the edge including the machined area
⇒SUS440C or 13Cr Stainless Steel: Approximately 30 mm from the edge including the machined area
*Cross-drilled hole areas may be out of O.D. tolerances due to annealing-induced deformation.
■Effective Hardened Layer Depth of Hardening
The effective hardened layer depth varies depending on the external dimensions and materials.
| O.D. D | Effective Hardened Layer Depth | |||
|---|---|---|---|---|
| SUJ2 Equivalent | SUS440C/ 13Cr Stainless Steel | |||
| 6 to 10 | 0.5 or More | 0.5 or More | ||
| 12, 13 | 0.7 or More | |||
| 15 to 20 | 0.7 or More | |||
| 25 to 50 | 1.0 or More | |||

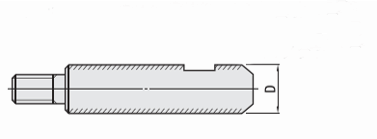

■About hard chrome plating and plating layer of machined area
- Hard chrome plating is applied after surface treatment of the base material, so there is no plating on the machined area.
- In the example below, only "///" area is treated with hard chrome plating.
Ex. Plating Remains: Stepped, Threaded Shaft, Set Screw Flat
/// Part: Plating Remains

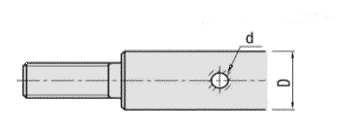

■Peeling of Cross-Drilled Hole Plating
· Due to the deburring process on the cross-drilled holes, there may be some peeling of the plating layer near the machining area.
/// Part: Peeled plating part
Difference Between Shaft and Rotary Shaft
· Specification comparison between Linear Shaft and Rotary Shaft
■ Basic Specifications
| Specifications | Shafts | Rotary Shaft | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Material | SUJ2 Equivalent SUS440C or 13Cr Stainless Steel | S45C Equivalent SUS304 | S45C Equivalent SUS304 | SCM435 | ||||||
| Hardening | Induction Hardened | - | - | Hardness: 30 to 35 HRC | ||||||
| O.D. Tolerance | g6/h5 | f8 | g6/h9/h7 | g6 | ||||||
| Surface Treatment | No Plating Hard Chrome Plating Low Temperature Black Chrome Plating Electroless Nickel Plating (Surface Treatment Fully Plated Type) | Hard Chrome Plating | No Plating Black Oxide Electroless Nickel Plating | Black Oxide Electroless Nickel Plating | ||||||
*Hard chrome plating leaves no plating layer on the machined area.
■ Alteration
| Alterations | Shafts | Rotary Shaft | |||||
|---|---|---|---|---|---|---|---|
| L Dimension Tolerance | L < 200 >> L ± 0.03 200 ≤ L < 500 >> L ± 0.05 L ≥ 500 >> L±0.1 | L < 500 >> L ± 0.05 L ≥ 500 >> L±0.1 Not applicable when L ≥ 800 | |||||
| Wrench Flats | Can be specified up to 2 Locations | Can be specified up to 1 Location | |||||
| Set Screw Flat | Can be specified up to 2 Locations | Can be specified up to 3 Locations | |||||
| 2 Set Screw Flats | Can be specified up to 2 Locations Angle Specified: Fixed | Can be specified up to 1 Location Angle Specified: Configurable in 15 degree Increments | |||||
| V Groove | Can be specified up to 2 Locations | - | |||||
| Keyway | Can be specified up to 2 Locations Processing of Stepped Part: Not Possible | Can be specified up to 4 Locations Processing of Stepped Part: Possible | |||||
| Change to Fine Thread | 2 Types | 1 Type | |||||
| Change to Fine Thread | 1 Type | - | |||||
| Undercut | M6 to M30 | M3 to M30 | |||||
| Tapped Depth | Possible | Possible | |||||
| Retaining Ring Groove | Can be specified 2 Locations (It will be a retaining ring type instead of alterations) | 2 locations on D part, 1 location each on stepped part can be combined | |||||
| Slit Cam Groove | - | Can be specified up to 1 Location | |||||
| Concentricity | - | Possible | |||||
| Left-hand Thread / Thread | - | Possible | |||||
| Slit Added | - | Can be specified up to 1 Location | |||||
| C Chamfering Width | - | Possible | |||||
Cleaning Process
* Stainless steel products may be used with alkaline hot pure water. There is no change in cleanliness.
* If the surface treatment is low-temperature black chrome plating, IPA cleaning will be applied.
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning |  |  High-pressure jet washing (Ro water) followed by pure water cleaning | |  Oil-free Compressor Used | |  Anti-rust single packing |
· Precision cleaning (Part Number: SH-□□)
Working Environment: Class 1,000 | Working Environment: Class 10 | |||||||
|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning | | High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning | |  Use pure water (13 MΩ·cm) | | Use nitrogen blow | |  Conducted on a clean bench in a Class 10 clean environment |
· Electrolytic polishing + precision cleaning (Part Number: SHD-□□)
Working Environment: Class 1,000 | Working Environment: Class 10 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning | |  Electrolytic polishing with an electrolytic polishing layer according to the material | | High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning | | Use warm pure water (13 MΩ·cm) | | Use nitrogen blow | | Conducted on a clean bench in a Class 10 clean environment |
Packaging Example| For degreasing: (Part Number: SL-□□) | For precision cleaning or electrolytic polishing + precision cleaning: | |
| (Part Number: SH-□□/SHD-□□) | ||
| For austenitic stainless steel and aluminum materials | For iron and martensitic stainless steel materials | |
 |  |  |
| Depending on some products and sizes, packaging type may vary. | [ ! ] Both the first and second layer packaging are degassed. | [ ! ] A desiccant is included as an anti-rust measure. There is one desiccant per package. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| Electrolytic polishing + precision cleaning | SHD-□□ | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| SH-PSSFGC6-[15-800/1]-M3-SC[0-592/1] |
| SH-PSSFGC8-[15-800/1]-M[3,4,5]-SC[0-592/1] |
| SH-PSSFGC10-[15-800/1]-M[3,4,5,6]-SC[0-792/1] |
| SH-PSSFGC10-[15-800/1]-MD6-SC[0-792/1] |
| SH-PSSFGC12-[15-800/1]-M[4,5,6,8]-SC[0-800/1] |
| SH-PSSFGC12-[15-800/1]-MD[6,8]-SC[0-800/1] |
| SH-PSSFGC12-[15-800/1]-MSC8-SC[0-800/1] |
| SH-PSSFGC13-[15-800/1]-M[4,5,6,8]-SC[0-800/1] |
| SH-PSSFGC13-[15-800/1]-MD[6,8]-SC[0-800/1] |
| SH-PSSFGC13-[15-800/1]-MSC8-SC[0-800/1] |
| SH-PSSFGC15-[15-800/1]-M[4,5,6,8,10]-SC[0-800/1] |
| SH-PSSFGC15-[15-800/1]-MD[6,8,10]-SC[0-800/1] |
| SH-PSSFGC15-[15-800/1]-MSC[8,10]-SC[0-800/1] |
| SH-PSSFGC16-[15-800/1]-M[4,5,6,8,10]-SC[0-800/1] |
| SH-PSSFGC16-[15-800/1]-MD[6,8,10]-SC[0-800/1] |
| SH-PSSFGC16-[15-800/1]-MSC[8,10]-SC[0-800/1] |
| SH-PSSFGC18-[30-800/1]-M[4,5,6,8,10,12]-SC[0-800/1] |
| SH-PSSFGC18-[30-800/1]-MD[6,8,10,12]-SC[0-800/1] |
| SH-PSSFGC18-[30-800/1]-MSC[8,10,12]-SC[0-800/1] |
| SH-PSSFGC20-[30-800/1]-M[4,5,6,8,10,12]-SC[0-800/1] |
| SH-PSSFGC20-[30-800/1]-MD[6,8,10,12]-SC[0-800/1] |
| SH-PSSFGC20-[30-800/1]-MSC[8,10,12,14]-SC[0-800/1] |
| SH-PSSFGC25-[35-800/1]-M[4,5,6,8,10,12,16]-SC[0-800/1] |
| SH-PSSFGC25-[35-800/1]-MD[6,8,10,12,16]-SC[0-800/1] |
| SH-PSSFGC25-[35-800/1]-MSC[8,10,12,14,18]-SC[0-800/1] |
| SH-PSSFGC30-[35-800/1]-M[6,8,10,12,16,20]-SC[0-800/1] |
| SH-PSSFGC30-[35-800/1]-MD[6,8,10,12,16,20]-SC[0-800/1] |
| SH-PSSFGC30-[35-800/1]-MSC[8,10,12,14,18]-SC[0-800/1] |
| SH-PSSFGC35-[35-800/1]-M[8,10,12,16,20,24]-SC[0-800/1] |
| SH-PSSFGC35-[35-800/1]-MSC[8,10,12,14,18]-SC[0-800/1] |
| SH-PSSFGC40-[50-800/1]-M[10,12,16,20,24,30]-SC[0-800/1] |
| SH-PSSFGC40-[50-800/1]-MSC[10,12,14,18]-SC[0-800/1] |
| SH-PSSFGC50-[65-800/1]-M[12,16,20,24,30]-SC[0-800/1] |
| SH-PSSFGC50-[65-800/1]-MSC[12,14,18]-SC[0-800/1] |
| SL-PSSFGC6-[15-800/1]-M3-SC[0-592/1] |
| SL-PSSFGC8-[15-800/1]-M[3,4,5]-SC[0-592/1] |
| SL-PSSFGC10-[15-800/1]-M[3,4,5,6]-SC[0-792/1] |
| SL-PSSFGC10-[15-800/1]-MD6-SC[0-792/1] |
| SL-PSSFGC12-[15-800/1]-M[4,5,6,8]-SC[0-800/1] |
| SL-PSSFGC12-[15-800/1]-MD[6,8]-SC[0-800/1] |
| SL-PSSFGC12-[15-800/1]-MSC8-SC[0-800/1] |
| SL-PSSFGC13-[15-800/1]-M[4,5,6,8]-SC[0-800/1] |
| SL-PSSFGC13-[15-800/1]-MD[6,8]-SC[0-800/1] |
| SL-PSSFGC13-[15-800/1]-MSC8-SC[0-800/1] |
| SL-PSSFGC15-[15-800/1]-M[4,5,6,8,10]-SC[0-800/1] |
| SL-PSSFGC15-[15-800/1]-MD[6,8,10]-SC[0-800/1] |
| SL-PSSFGC15-[15-800/1]-MSC[8,10]-SC[0-800/1] |
| SL-PSSFGC16-[15-800/1]-M[4,5,6,8,10]-SC[0-800/1] |
| SL-PSSFGC16-[15-800/1]-MD[6,8,10]-SC[0-800/1] |
| SL-PSSFGC16-[15-800/1]-MSC[8,10]-SC[0-800/1] |
| SL-PSSFGC18-[30-800/1]-M[4,5,6,8,10,12]-SC[0-800/1] |
| SL-PSSFGC18-[30-800/1]-MD[6,8,10,12]-SC[0-800/1] |
| SL-PSSFGC18-[30-800/1]-MSC[8,10,12]-SC[0-800/1] |
| SL-PSSFGC20-[30-800/1]-M[4,5,6,8,10,12]-SC[0-800/1] |
| SL-PSSFGC20-[30-800/1]-MD[6,8,10,12]-SC[0-800/1] |
| SL-PSSFGC20-[30-800/1]-MSC[8,10,12,14]-SC[0-800/1] |
| SL-PSSFGC25-[35-800/1]-M[4,5,6,8,10,12,16]-SC[0-800/1] |
| SL-PSSFGC25-[35-800/1]-MD[6,8,10,12,16]-SC[0-800/1] |
| SL-PSSFGC25-[35-800/1]-MSC[8,10,12,14,18]-SC[0-800/1] |
| SL-PSSFGC30-[35-800/1]-M[6,8,10,12,16,20]-SC[0-800/1] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Shaft Dia. D (Ø) | Length L (mm) | Cleaning Method | Change Tapped Thread M to Fine Thread [MSC] (㎜) | Coarse Tapped [MD] Depth=Mx3 (㎜) | Wrench Flats at One Location [SC] (㎜) | Coarse Tapped [M] Depth=Mx2 (㎜) |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 6 Day(s) or more | 6 | 15 ～ 800 | Precision Cleaning | - | - | 0 ～ 592 | 3 | ||
- | 1 Piece(s) | 6 Day(s) or more | 8 | 15 ～ 800 | Precision Cleaning | - | - | 0 ～ 592 | 3 ～ 5 | ||
- | 1 Piece(s) | 6 Day(s) or more | 10 | 15 ～ 800 | Precision Cleaning | - | - | 0 ～ 792 | 3 ～ 6 | ||
- | 1 Piece(s) | 6 Day(s) or more | 10 | 15 ～ 800 | Precision Cleaning | - | 6 | 0 ～ 792 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 12 | 15 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 4 ～ 8 | ||
- | 1 Piece(s) | 6 Day(s) or more | 12 | 15 ～ 800 | Precision Cleaning | - | 6 ～ 8 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 12 | 15 ～ 800 | Precision Cleaning | 8 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 13 | 15 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 4 ～ 8 | ||
- | 1 Piece(s) | 6 Day(s) or more | 13 | 15 ～ 800 | Precision Cleaning | - | 6 ～ 8 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 13 | 15 ～ 800 | Precision Cleaning | 8 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 15 | 15 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 4 ～ 10 | ||
- | 1 Piece(s) | 6 Day(s) or more | 15 | 15 ～ 800 | Precision Cleaning | - | 6 ～ 10 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 15 | 15 ～ 800 | Precision Cleaning | 8 ～ 10 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 16 | 15 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 4 ～ 10 | ||
- | 1 Piece(s) | 6 Day(s) or more | 16 | 15 ～ 800 | Precision Cleaning | - | 6 ～ 10 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 16 | 15 ～ 800 | Precision Cleaning | 8 ～ 10 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 18 | 30 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 4 ～ 12 | ||
- | 1 Piece(s) | 6 Day(s) or more | 18 | 30 ～ 800 | Precision Cleaning | - | 6 ～ 12 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 18 | 30 ～ 800 | Precision Cleaning | 8 ～ 12 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 20 | 30 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 4 ～ 12 | ||
- | 1 Piece(s) | 6 Day(s) or more | 20 | 30 ～ 800 | Precision Cleaning | - | 6 ～ 12 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 20 | 30 ～ 800 | Precision Cleaning | 8 ～ 14 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 25 | 35 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 4 ～ 16 | ||
- | 1 Piece(s) | 6 Day(s) or more | 25 | 35 ～ 800 | Precision Cleaning | - | 6 ～ 16 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 25 | 35 ～ 800 | Precision Cleaning | 8 ～ 18 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 30 | 35 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 6 ～ 20 | ||
- | 1 Piece(s) | 6 Day(s) or more | 30 | 35 ～ 800 | Precision Cleaning | - | 6 ～ 20 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 30 | 35 ～ 800 | Precision Cleaning | 8 ～ 18 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 35 | 35 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 8 ～ 24 | ||
- | 1 Piece(s) | 6 Day(s) or more | 35 | 35 ～ 800 | Precision Cleaning | 8 ～ 18 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 40 | 50 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 10 ～ 30 | ||
- | 1 Piece(s) | 6 Day(s) or more | 40 | 50 ～ 800 | Precision Cleaning | 10 ～ 18 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 50 | 65 ～ 800 | Precision Cleaning | - | - | 0 ～ 800 | 12 ～ 30 | ||
- | 1 Piece(s) | 6 Day(s) or more | 50 | 65 ～ 800 | Precision Cleaning | 12 ～ 18 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 6 | 15 ～ 800 | Degreasing | - | - | 0 ～ 592 | 3 | ||
- | 1 Piece(s) | 6 Day(s) or more | 8 | 15 ～ 800 | Degreasing | - | - | 0 ～ 592 | 3 ～ 5 | ||
- | 1 Piece(s) | 6 Day(s) or more | 10 | 15 ～ 800 | Degreasing | - | - | 0 ～ 792 | 3 ～ 6 | ||
- | 1 Piece(s) | 6 Day(s) or more | 10 | 15 ～ 800 | Degreasing | - | 6 | 0 ～ 792 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 12 | 15 ～ 800 | Degreasing | - | - | 0 ～ 800 | 4 ～ 8 | ||
- | 1 Piece(s) | 6 Day(s) or more | 12 | 15 ～ 800 | Degreasing | - | 6 ～ 8 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 12 | 15 ～ 800 | Degreasing | 8 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 13 | 15 ～ 800 | Degreasing | - | - | 0 ～ 800 | 4 ～ 8 | ||
- | 1 Piece(s) | 6 Day(s) or more | 13 | 15 ～ 800 | Degreasing | - | 6 ～ 8 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 13 | 15 ～ 800 | Degreasing | 8 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 15 | 15 ～ 800 | Degreasing | - | - | 0 ～ 800 | 4 ～ 10 | ||
- | 1 Piece(s) | 6 Day(s) or more | 15 | 15 ～ 800 | Degreasing | - | 6 ～ 10 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 15 | 15 ～ 800 | Degreasing | 8 ～ 10 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 16 | 15 ～ 800 | Degreasing | - | - | 0 ～ 800 | 4 ～ 10 | ||
- | 1 Piece(s) | 6 Day(s) or more | 16 | 15 ～ 800 | Degreasing | - | 6 ～ 10 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 16 | 15 ～ 800 | Degreasing | 8 ～ 10 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 18 | 30 ～ 800 | Degreasing | - | - | 0 ～ 800 | 4 ～ 12 | ||
- | 1 Piece(s) | 6 Day(s) or more | 18 | 30 ～ 800 | Degreasing | - | 6 ～ 12 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 18 | 30 ～ 800 | Degreasing | 8 ～ 12 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 20 | 30 ～ 800 | Degreasing | - | - | 0 ～ 800 | 4 ～ 12 | ||
- | 1 Piece(s) | 6 Day(s) or more | 20 | 30 ～ 800 | Degreasing | - | 6 ～ 12 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 20 | 30 ～ 800 | Degreasing | 8 ～ 14 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 25 | 35 ～ 800 | Degreasing | - | - | 0 ～ 800 | 4 ～ 16 | ||
- | 1 Piece(s) | 6 Day(s) or more | 25 | 35 ～ 800 | Degreasing | - | 6 ～ 16 | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 25 | 35 ～ 800 | Degreasing | 8 ～ 18 | - | 0 ～ 800 | - | ||
- | 1 Piece(s) | 6 Day(s) or more | 30 | 35 ～ 800 | Degreasing | - | - | 0 ～ 800 | 6 ～ 20 |
Loading...
Basic Information
| Environmentally friendly | RoHS Compliant (10 Substances) | Basic Shape | Solid | Characteristics/Applications | Clean Washed |
|---|---|---|---|---|---|
| End Shape (Left) | Tapped | End Shape (Right) | No Machining | Shaft End Perpendicularity | Perpendicularity (0.2) |
| Material | SUS304 | Heat Treatment | Not Provided | Surface Treatment | Hard Chrome Plating |
| Material Details | SUS304 | Shaft Fit Tolerance | f8 | Hardness | Not induction hardened |
Specification/Dimensions
-
Shaft Dia. D(Ø)
-
Length L(mm)
-
Cleaning Method
- Degreasing
- Precision Cleaning
-
Change Tapped Thread M to Fine Thread [MSC](㎜)
-
Coarse Tapped [MD] Depth=Mx3(㎜)
-
Wrench Flats at One Location [SC](㎜)
-
Coarse Tapped [M] Depth=Mx2(㎜)
-
type
- SH-PSSFGC
- SL-PSSFGC
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 6 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- High Precision Linear Shafts - Stepped Ends / Stepped Ends with Wrench Flats - One End Threaded / Both Ends Threaded / One End Threaded / One End Tapped
- Linear Shafts - Both Ends Threaded Hollow
- Linear Shafts-Both Ends Tapped
- Linear Shafts-Both Ends Tapped with Wrench Flats / Both Ends Tapped with Cross-Drilled Hole
- Linear Shafts-Both Ends Threaded with Wrench Flats / Cross-Drilled Hole
- Linear Shafts-One End Stepped and Threaded / Both Ends Stepped and Threaded
- Tube Guide Shafts Straight Rod Type
- Tube Guide Shafts, Both End Threaded with Wrench Flats
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
