[Clean & Pack] Shaft with Retaining Ring Groove

Click this image to zoom it.

Move the mouse over the image to zoom

Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.

■Part Number for Clean & Pack Products

·Degreasing (Anti-rust single packing)	: Part Number SL-□□
·Precision cleaning (Degassing double packing)	: Part Number SH-□□
·Electrolytic polishing + precision cleaning (Degassing double packing)	: Part Number SHD-□□

Product Part Number	Cleaning Method	Packaging Type	Effects Compared to Uncleaned Product	Environment (Standard)	Process
SL-□□	Degreasing	Anti-rust packing	Oil removal	General environment	Regular assembly process
					Post battery assembly process
SH-□□	Precision cleaning	Degassing double packing	Oil removal Dust removal	Clean environment (Class 10 to 1,000)	Battery assembly process
					LCD-related post assembly process
					In-vehicle camera assembly process
SHD-□□	Electrolytic polishing + precision cleaning	Degassing double packing	Oil removal Dust removal Outgas reduction	Vacuum environment Clean environment (Class 10 to 1,000)	Pre-semiconductor process
					Liquid crystal deposition process
					Pre-OLED process

■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.

(i)Caution

Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product. Please be careful about the application location and storage environment.

Part Number

Configured Part Number is shown.

Drawing/Specifications
3D Preview
Part Numbers
More Information

[ ! ] For plated products, the surface roughness of D part is

; and for unplated products, it is

.
[ ! ] L dimension tolerance conforms to JIS B 0405 Class m.

Type			[ M ] Material	[ H ] Hardness	[ S ] Surface Treatment	Cleaning Method
D Tolerance f8	D Tolerance g6	D Tolerance h5	[ M ] Material	[ H ] Hardness	[ S ] Surface Treatment	Cleaning Method	Cleaning Environment	Packaging Type	Packing Environment
SL-PSSFGR	-	-	SUS304	-	Hard Chrome Plating Plating Hardness: HV750 or more Plating Thickness: 10 µ or more	Degreasing	General environment	Anti-rust packing	General environment
SH-PSSFGR	-	-	SUS304	-		Precision cleaning	Class 1,000	Degassing double packing	Class 10
-	SL-SSFAR	SL-SSFUR	SUS440C or 13Cr Stainless Steel	Induction Hardening SUJ2 Equivalent 58 HRC or more SUS440C or 13Cr Stainless Steel 56 HRC or more	-	Degreasing	General environment	Anti-rust packing	General environment
-	SH-SSFAR	SH-SSFUR			-	Precision cleaning	Class 1,000	Degassing double packing	Class 10
-	SL-PSSFAR	SL-PSSFUR			Hard Chrome Plating Plating Hardness: HV750 or more Plating Thickness: 5 µ or more	Degreasing	General environment	Anti-rust packing	General environment
-	SH-PSSFAR	SH-PSSFUR				Precision cleaning	Class 1,000	Degassing double packing	Class 10
-	SL-RSFAR	-	SUJ2 Equivalent		Low Temperature Black Chrome Plating	Degreasing	General environment	Anti-rust packing	General environment
-	SH-RSFAR	-	SUJ2 Equivalent			Precision cleaning	Class 1,000	Degassing double packing	Class 10
-	SL-RSSFAR	-	SUS440C or 13Cr Stainless Steel			Degreasing	General environment	Anti-rust packing	General environment
-	SH-RSSFAR	-	SUS440C or 13Cr Stainless Steel			Precision cleaning	Class 1,000	Degassing double packing	Class 10

[ ! ] D tolerance f8 type will be D dimension 6 or more.
[ ! ] When D ≤ 5, the entire surface may be hardened.
[ ! ] Low temperature black chrome plated products made of SUS440C or 13Cr stainless steel have identification grooves.
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the

details of degreasing and precision cleaning shown at the bottom of the specification table.

Specification Table

Part Number	-	L
SL-PSSFGR10	-	50
SH-PSSFGR16	-	100

D Tolerance
D	f8	g6	h5
3	-	-0.002 -0.008	0 -0.004
4		-0.004 -0.012	0 -0.005
5
6	-0.010 -0.028
8	-0.013 -0.035	-0.005 -0.014	0 -0.006
10
12	-0.016 -0.043	-0.006 -0.017	0 -0.008
13
15
16
18
20	-0.020 -0.053	-0.007 -0.020	0 -0.009
25
30
35	-0.025 -0.064	-0.009 -0.025	0 -0.011
40
50

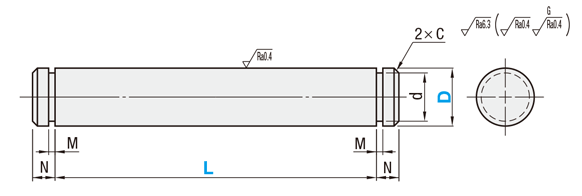

Part Number		L 1 mm Increments	N	M		d		Applicable Retaining Ring	C
Type	D	L 1 mm Increments	N	M	Tolerance	d	Tolerance	Applicable Retaining Ring	C
D Tolerance f8 (D ≥ 6) SL-PSSFGR SH-PSSFGR D Tolerance g6 SL-SSFAR SH-SSFAR SL-PSSFAR SH-PSSFAR SL-RSFAR SH-RSFAR SL-RSSFAR SH-RSSFAR D Tolerance h5 SL-SSFUR SH-SSFUR SL-PSSFUR SH-PSSFUR [ ! ] Low Temperature Black Chrome Plated Products D ≤ 30, L ≤ 500	3	10 to 400	2	0.5	+0.05 0	2	+0.06 0	NETW□2	0.2 or less
	4	10 to 400		0.7	+0.1 0	3	+0.06 0	NETW□3
	5	10 to 400				4	+0.075 0	NETW□4
	6	20 to 796				5	+0.075 0	NETW□5	0.5 or Less
	8	20 to 794	3	0.9		7	+0.09 0	NETW□7
	10	20 to 794	3	1.15	+0.14 0	9.6	0 -0.09	STW□10
	12	20 to 792	4			11.5	0 -0.11	STW□12
	13	25 to 792				12.4		STW□13
	15	25 to 792				14.3		STW□15
	16	30 to 792				15.2		STW□16
	18	30 to 792		1.35		17		STW□18
	20	30 to 792				19	0 -0.21	STW□20	1.0 or less
	25	35 to 790	5			23.9		STW□25
	30	35 to 790	5	1.65		28.6		STW□30
	35	35 to 788	6	1.75		33		STW□35
	40	35 to 788		1.9		38		STW□40
	50	35 to 788		2.2		47		STW□50

Alteration Details

· See below for alteration details.
*Alteration may lower hardness.

Alterations Code	Alteration Details	Applicable Conditions	Ordering Example
NWC	No Retaining Ring Groove on One End	-	SL-PSSFGR20-300-NWC
LLC	Dimensioning leader position of L dimension will be altered to the outside of retaining ring grooves	[ ! ] LLC = 1 mm increment [ ! ] The positions of LLC dimension and L dimension are different.	SL-PSSFGR20-LLC300

Circularity (M), Straightness (K), L Dimension Tolerance, Perpendicularity

■Straightness Measurement Method

Shaft ends are supported on V-blocks and turned 360 degrees
to measure shaft runout using a dial indicator.

1/2 of measured runout is defined as the straightness.

■Circularity M

Shaft Outer Dia. g6·h5 (Hardening)

D		Circularity M
Over	or Less	Circularity M
2	13	0.004
13	20	0.005
20	30	0.006

Unit: mm

Shaft Outer Dia. f8 (without hardening)

D		Circularity M
Over	or Less	Circularity M
5	10	0.011
10	18	0.014
18	30	0.017

Unit: mm

■Straightness K

Shaft Outer Dia. g6·h5 (Hardening)

D	L	Straightness K
3, 4	N/A	(L/100) × 0.05 or Less
5	N/A	(L/100) × 0.03 or Less
6 to 30	L ≤ 100	0.01 or Less
6 to 30	L > 100	(L/100) × 0.01 or Less

Unit: mm

Shaft Outer Dia. f8 (without hardening)

L	Straightness K
L ≤ 100	0.025 or Less
L > 100	(L/100) × 0.025 or Less

Unit: mm

■L Dimension Tolerance

Shaft Outer Dia. g6·h5 (Hardening)

L		L Dimension Tolerance
Over	or Less	L Dimension Tolerance
9	30	±0.2
30	120	±0.3
120	400	±0.5
400	1000	±0.8
1000	1500	±1.2

Unit: mm

Shaft Outer Dia. f8 (without hardening)

L		L Dimension Tolerance
Over	or Less	L Dimension Tolerance
9	30	±0.2
30	120	±0.3
120	400	±0.5
400	1000	±0.8
1000	1500	±1.2

Unit: mm

■ Concentricity and Perpendicularity

Notes on Hardening and Surface Treatment

■Reduced Hardness around Machined Areas
· Although processing is performed after the base material is hardened, annealing may lower hardness of the machined area.
*Reduced Hardness: Approximately 10 to 40 HRC

■Reduced Hardness Range

· Approximately 10 mm from the machined area

(Example)

■Machined area where hardness has lowered due to annealing

· Retaining Ring Groove

■Effective Hardened Layer Depth of Hardening

The effective hardened layer depth varies depending on the external dimensions and materials.

O.D. D	Effective Hardened Layer Depth
	SUJ2 Equivalent	SUS440C/ 13Cr Stainless Steel
	SUJ2 Equivalent	SUS440C/ 13Cr Stainless Steel
3	0.5 or More	0.5 or More
4
5
6 to 10
12, 13	0.7 or More
15 to 20	0.7 or More	0.7 or More
25 to 30	1.0 or More	0.7 or More

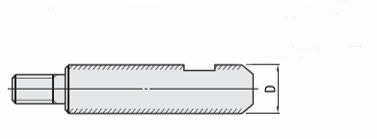

■About hard chrome plating and plating layer of machined area

Hard chrome plating is applied after surface treatment of the base material, so there is no plating on the machined area.
In the example below, only "///" area is treated with hard chrome plating.

Ex. Plating Remains: Stepped, Threaded Shaft, Set Screw Flat

/// Part: Plating Remains

Difference Between Shaft and Rotary Shaft

· Specification comparison between Linear Shaft and Rotary Shaft

■ Basic Specifications

Specifications	Shafts		Rotary Shaft
Material	SUJ2 Equivalent SUS440C or 13Cr Stainless Steel	S45C Equivalent SUS304	S45C Equivalent SUS304	SCM435
Hardening	Induction Hardened	-	-	Hardness: 30 to 35 HRC
O.D. Tolerance	g6/h5	f8	g6/h9/h7	g6
Surface Treatment	No Plating Hard Chrome Plating Low Temperature Black Chrome Plating Electroless Nickel Plating (Surface Treatment Fully Plated Type)	Hard Chrome Plating	No Plating Black Oxide Electroless Nickel Plating	Black Oxide Electroless Nickel Plating

*Hard chrome plating leaves no plating layer on the machined area.

■ Alteration

Alterations	Shafts	Rotary Shaft
L Dimension Tolerance	L < 200 >> L ± 0.03 200 ≤ L < 500 >> L ± 0.05 L ≥ 500 >> L±0.1	L < 500 >> L ± 0.05 L ≥ 500 >> L±0.1 Not applicable when L ≥ 800
Wrench Flats	Can be specified up to 2 Locations	Can be specified up to 1 Location
Set Screw Flat	Can be specified up to 2 Locations	Can be specified up to 3 Locations
2 Set Screw Flats	Can be specified up to 2 Locations Angle Specified: Fixed	Can be specified up to 1 Location Angle Specified: Configurable in 15 degree Increments
V Groove	Can be specified up to 2 Locations	-
Keyway	Can be specified up to 2 Locations Processing of Stepped Part: Not Possible	Can be specified up to 4 Locations Processing of Stepped Part: Possible
Change to Fine Thread	2 Types	1 Type
Change to Fine Thread	1 Type	-
Undercut	M6 to M30	M3 to M30
Tapped Depth	Possible	Possible
Retaining Ring Groove	Can be specified 2 Locations (It will be a retaining ring type instead of alterations)	2 locations on D part, 1 location each on stepped part can be combined
Slit Cam Groove	-	Can be specified up to 1 Location
Concentricity	-	Possible
Left-hand Thread / Thread	-	Possible
Slit Added	-	Can be specified up to 1 Location
C Chamfering Width	-	Possible

Cleaning Process

· Degreasing (Part Number: SL-□□)

* Stainless steel products may be used with alkaline hot pure water. There is no change in cleanliness.
* If the surface treatment is low-temperature black chrome plating, IPA cleaning will be applied.

Working Environment: General environment
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning		High-pressure jet washing (Ro water) followed by pure water cleaning		Oil-free Compressor Used		Anti-rust single packing

· Precision cleaning (Part Number: SH-□□)

				Working Environment: Class 1,000				Working Environment: Class 10
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning		High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning		Use pure water (13 MΩ·cm)		Use nitrogen blow		Conducted on a clean bench in a Class 10 clean environment

· Electrolytic polishing + precision cleaning (Part Number: SHD-□□)

						Working Environment: Class 1,000				Working Environment: Class 10
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning		Electrolytic polishing with an electrolytic polishing layer according to the material		High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning		Use warm pure water (13 MΩ·cm)		Use nitrogen blow		Conducted on a clean bench in a Class 10 clean environment

Packaging Example

For degreasing: (Part Number: SL-□□)	For precision cleaning or electrolytic polishing + precision cleaning:
For degreasing: (Part Number: SL-□□)	(Part Number: SH-□□/SHD-□□)
	For austenitic stainless steel and aluminum materials	For iron and martensitic stainless steel materials

Depending on some products and sizes, packaging type may vary.	[ ! ] Both the first and second layer packaging are degassed.	[ ! ] A desiccant is included as an anti-rust measure. There is one desiccant per package.

Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method	Product Part Number	Packaging Type	Effects Compared to Uncleaned Product	Environment (Standard)	Use Case and Process
Degreasing	SL-□□	Anti-rust packing	Oil removal	General environment	Regular assembly process
Degreasing	SL-□□	Anti-rust packing	Oil removal	General environment	Post battery assembly process
Precision cleaning	SH-□□	Degassing double packing	Oil removal Dust removal	Clean environment (Class 10 to 1,000)	Battery assembly process
					LCD-related post assembly process
					In-vehicle camera assembly process
Electrolytic polishing + precision cleaning	SHD-□□	Degassing double packing	Oil removal Dust removal Outgas reduction	Vacuum environment Clean environment (Class 10 to 1,000)	Pre-semiconductor process
					Liquid crystal deposition process
					Pre-OLED process

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
SH-PSSFGR6-[20-800/1]
SH-PSSFGR6-LLC[20-800/1]
SH-PSSFGR8-[20-800/1]
SH-PSSFGR8-LLC[20-800/1]
SH-PSSFGR10-[20-800/1]
SH-PSSFGR10-LLC[20-800/1]
SH-PSSFGR12-[20-800/1]
SH-PSSFGR12-LLC[20-800/1]
SH-PSSFGR13-[25-800/1]
SH-PSSFGR13-LLC[25-800/1]
SH-PSSFGR15-[25-800/1]
SH-PSSFGR15-LLC[25-800/1]
SH-PSSFGR16-[30-800/1]
SH-PSSFGR16-LLC[30-800/1]
SH-PSSFGR18-[30-800/1]
SH-PSSFGR18-LLC[30-800/1]
SH-PSSFGR20-[30-800/1]
SH-PSSFGR20-LLC[30-800/1]
SH-PSSFGR25-[35-800/1]
SH-PSSFGR25-LLC[35-800/1]
SH-PSSFGR30-[35-800/1]
SH-PSSFGR30-LLC[35-800/1]
SH-PSSFGR35-[35-800/1]
SH-PSSFGR35-LLC[35-800/1]
SH-PSSFGR40-[35-800/1]
SH-PSSFGR40-LLC[35-800/1]
SH-PSSFGR50-[35-800/1]
SH-PSSFGR50-LLC[35-800/1]
SL-PSSFGR6-[20-800/1]
SL-PSSFGR6-LLC[20-800/1]
SL-PSSFGR8-[20-800/1]
SL-PSSFGR8-LLC[20-800/1]
SL-PSSFGR10-[20-800/1]
SL-PSSFGR10-LLC[20-800/1]
SL-PSSFGR12-[20-800/1]
SL-PSSFGR12-LLC[20-800/1]
SL-PSSFGR13-[25-800/1]
SL-PSSFGR13-LLC[25-800/1]
SL-PSSFGR15-[25-800/1]
SL-PSSFGR15-LLC[25-800/1]
SL-PSSFGR16-[30-800/1]
SL-PSSFGR16-LLC[30-800/1]
SL-PSSFGR18-[30-800/1]
SL-PSSFGR18-LLC[30-800/1]
SL-PSSFGR20-[30-800/1]
SL-PSSFGR20-LLC[30-800/1]
SL-PSSFGR25-[35-800/1]
SL-PSSFGR25-LLC[35-800/1]
SL-PSSFGR30-[35-800/1]
SL-PSSFGR30-LLC[35-800/1]
SL-PSSFGR35-[35-800/1]
SL-PSSFGR35-LLC[35-800/1]
SL-PSSFGR40-[35-800/1]
SL-PSSFGR40-LLC[35-800/1]
SL-PSSFGR50-[35-800/1]
SL-PSSFGR50-LLC[35-800/1]

Standard Unit Price	Minimum order quantity	Days to Ship	Shaft Dia. D (Ø)	Length L (mm)	Cleaning Method	Length Leader Position Change [LLC] (㎜)
-	1 Piece(s)	6 Day(s) or more	6	20 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	6	-	Precision Cleaning	20 ～ 800
-	1 Piece(s)	6 Day(s) or more	8	20 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	8	-	Precision Cleaning	20 ～ 800
-	1 Piece(s)	6 Day(s) or more	10	20 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	10	-	Precision Cleaning	20 ～ 800
-	1 Piece(s)	6 Day(s) or more	12	20 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	12	-	Precision Cleaning	20 ～ 800
-	1 Piece(s)	6 Day(s) or more	13	25 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	13	-	Precision Cleaning	25 ～ 800
-	1 Piece(s)	6 Day(s) or more	15	25 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	15	-	Precision Cleaning	25 ～ 800
-	1 Piece(s)	6 Day(s) or more	16	30 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	16	-	Precision Cleaning	30 ～ 800
-	1 Piece(s)	6 Day(s) or more	18	30 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	18	-	Precision Cleaning	30 ～ 800
-	1 Piece(s)	6 Day(s) or more	20	30 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	20	-	Precision Cleaning	30 ～ 800
-	1 Piece(s)	6 Day(s) or more	25	35 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	25	-	Precision Cleaning	35 ～ 800
-	1 Piece(s)	6 Day(s) or more	30	35 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	30	-	Precision Cleaning	35 ～ 800
-	1 Piece(s)	6 Day(s) or more	35	35 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	35	-	Precision Cleaning	35 ～ 800
-	1 Piece(s)	6 Day(s) or more	40	35 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	40	-	Precision Cleaning	35 ～ 800
-	1 Piece(s)	6 Day(s) or more	50	35 ～ 800	Precision Cleaning	-
-	1 Piece(s)	6 Day(s) or more	50	-	Precision Cleaning	35 ～ 800
-	1 Piece(s)	6 Day(s) or more	6	20 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	6	-	Degreasing	20 ～ 800
-	1 Piece(s)	6 Day(s) or more	8	20 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	8	-	Degreasing	20 ～ 800
-	1 Piece(s)	6 Day(s) or more	10	20 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	10	-	Degreasing	20 ～ 800
-	1 Piece(s)	6 Day(s) or more	12	20 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	12	-	Degreasing	20 ～ 800
-	1 Piece(s)	6 Day(s) or more	13	25 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	13	-	Degreasing	25 ～ 800
-	1 Piece(s)	6 Day(s) or more	15	25 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	15	-	Degreasing	25 ～ 800
-	1 Piece(s)	6 Day(s) or more	16	30 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	16	-	Degreasing	30 ～ 800
-	1 Piece(s)	6 Day(s) or more	18	30 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	18	-	Degreasing	30 ～ 800
-	1 Piece(s)	6 Day(s) or more	20	30 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	20	-	Degreasing	30 ～ 800
-	1 Piece(s)	6 Day(s) or more	25	35 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	25	-	Degreasing	35 ～ 800
-	1 Piece(s)	6 Day(s) or more	30	35 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	30	-	Degreasing	35 ～ 800
-	1 Piece(s)	6 Day(s) or more	35	35 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	35	-	Degreasing	35 ～ 800
-	1 Piece(s)	6 Day(s) or more	40	35 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	40	-	Degreasing	35 ～ 800
-	1 Piece(s)	6 Day(s) or more	50	35 ～ 800	Degreasing	-
-	1 Piece(s)	6 Day(s) or more	50	-	Degreasing	35 ～ 800

Application Example

Basic Information

Environmentally friendly	RoHS Compliant (10 Substances)	Basic Shape	Solid	Characteristics/Applications	Clean Washed
End Shape (Left)	With Retaining Ring Grooves	End Shape (Right)	With Retaining Ring Grooves	Shaft End Perpendicularity	Perpendicularity (0.2)
Material	SUS304	Heat Treatment	Not Provided	Surface Treatment	Hard Chrome Plating
Material Details	SUS304	Shaft Fit Tolerance	f8	Hardness	Not induction hardened

Configure

56 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Shaft Dia. D(Ø)
6

8

10

12

13

15

16

18

20

25

30

35

40

50
Clear
Length L(mm)
[20-800/1mm Unit(s)]
Clear
Cleaning Method
- Degreasing
- Precision Cleaning
Clear
Length Leader Position Change [LLC](㎜)
[20-800/1㎜ Unit(s)]
Clear
type
- SH-PSSFGR
- SL-PSSFGR
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

6 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Additional Products in this Category

Tech Support

: Technical Inquiry

How can we improve?

[Clean & Pack] Shaft with Retaining Ring Groove

(i)Caution

Specification Table

Alteration Details

Circularity (M), Straightness (K), L Dimension Tolerance, Perpendicularity

Notes on Hardening and Surface Treatment

Difference Between Shaft and Rotary Shaft

Part Number

Application Example

Basic Information

Configure

Specification/Dimensions

Shaft Dia. D(Ø)

Length L(mm)

Cleaning Method

Length Leader Position Change [LLC](㎜)

type

CAD

Days to Ship

Specify Alterations

Additional Products in this Category

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm
