[Clean & Pack] Rotary Shaft - Both Ends Stepped

Click this image to zoom it.

Move the mouse over the image to zoom

Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.

■Part Number for Clean & Pack Products

·Degreasing (Anti-rust single packing)	: Part Number SL-□□
·Precision cleaning (Degassing double packing)	: Part Number SH-□□
·Electrolytic polishing + precision cleaning (Degassing double packing)	: Part Number SHD-□□

Product Part Number	Cleaning Method	Packaging Type	Effects Compared to Uncleaned Product	Environment (Standard)	Process
SL-□□	Degreasing	Anti-rust packing	Oil removal	General environment	Regular assembly process
					Post battery assembly process
SH-□□	Precision cleaning	Degassing double packing	Oil removal Dust removal	Clean environment (Class 10 to 1,000)	Battery assembly process
					LCD-related post assembly process
					In-vehicle camera assembly process
SHD-□□	Electrolytic polishing + precision cleaning	Degassing double packing	Oil removal Dust removal Outgas reduction	Vacuum environment Clean environment (Class 10 to 1,000)	Pre-semiconductor process
					Liquid crystal deposition process
					Pre-OLED process

■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.

(i)Caution

See here for related information such as technical information on cleaning effects and other cleaned product lineups.
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product. Please be careful about the application location and storage environment.

Part Number

Configured Part Number is shown.

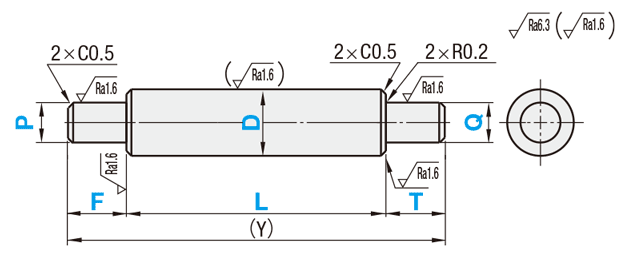

Drawing/Specifications
3D Preview
Part Numbers

■Standard Type

[ ! ] Surface roughness of Part D for h9 (Cold-drawn) is [Clean & Pack] Rotary Shaft - Both Ends Stepped Type: Related Image

. Surface roughness for h7 (Ground) and g6 (Ground) is [Clean & Pack] Rotary Shaft - Both Ends Stepped Type: Related Image

.
.

■Tolerance Table

D, P	h9 (Cold-drawn)	h7 (Ground)	g6 (Ground)
3	0 -0.025	0 -0.010	-0.002
			-0.008
3.1 to 6	0 -0.030	0 -0.012	-0.004
			-0.012
6.1 to 10	0 -0.036	0 -0.015	-0.005
			-0.014
10.1 to 18	0 -0.043	0 -0.018	-0.006
			-0.017
18.1 to 30	0 -0.052	0 -0.021	-0.007
			-0.020
30.1 to 50	0 -0.062	0 -0.025	-0.009
			-0.025

■Circularity and Straightness

■Concentricity and Perpendicularity

■Circularity of Part D

D		Circularity M
Over	or Less	Circularity M
5	13	0.004
13	20	0.005
20	40	0.006
40	50	0.007

■Dimension Tolerances of L and Other Dimensions

Dimension		Dimension Tolerance
Over	or Less	Dimension Tolerance
2	6	±0.1
6	30	±0.2
30	120	±0.3
120	400	±0.5
400	1000	±0.8

[ ! ] Circularity, straightness, concentricity, and perpendicularity of Part D are not applicable to h9 (Cold-drawn).

Type		Tolerance		[ M ] Material	[ S ] Surface Treatment	Cleaning Method
		D	P, Q			Cleaning Method	Cleaning Environment	Packaging Type	Packing Environment
(1)	SL-SSFRMHQ	h9 (Cold-drawn)	h7	SUS304	-	Degreasing	General environment	Anti-rust packing	General environment
	SH-SSFRMHQ					Precision cleaning	Class 1,000	Degassing double packing	Class 10
	SHD-SSFRMHQ					Electrolytic polishing + precision cleaning
	SL-PSFRMHQ			S45C Equivalent	Electroless Nickel Plating	Degreasing	General environment	Anti-rust packing	General environment
	SH-PSFRMHQ					Precision cleaning	Class 1,000	Degassing double packing	Class 10
(2)	SL-SSFRMGQ		g6	SUS304	-	Degreasing	General environment	Anti-rust packing	General environment
	SH-SSFRMGQ					Precision cleaning	Class 1,000	Degassing double packing	Class 10
	SHD-SSFRMGQ					Electrolytic polishing + precision cleaning
	SL-PSFRMGQ			S45C Equivalent	Electroless Nickel Plating	Degreasing	General environment	Anti-rust packing	General environment
	SH-PSFRMGQ					Precision cleaning	Class 1,000	Degassing double packing	Class 10
(3)	SL-SSFRHQ	h7 (Ground)	h7	SUS304	-	Degreasing	General environment	Anti-rust packing	General environment
	SH-SSFRHQ					Precision cleaning	Class 1,000	Degassing double packing	Class 10
	SHD-SSFRHQ					Electrolytic polishing + precision cleaning
	SL-PSFRHQ			S45C Equivalent	Electroless Nickel Plating	Degreasing	General environment	Anti-rust packing	General environment
	SH-PSFRHQ					Precision cleaning	Class 1,000	Degassing double packing	Class 10
(4)	SL-SSFRQ	g6 (Ground)	g6	SUS304	-	Degreasing	General environment	Anti-rust packing	General environment
	SH-SSFRQ					Precision cleaning	Class 1,000	Degassing double packing	Class 10
	SHD-SSFRQ					Electrolytic polishing + precision cleaning
	SL-PSFRQ			S45C Equivalent	Electroless Nickel Plating	Degreasing	General environment	Anti-rust packing	General environment
	SH-PSFRQ					Precision cleaning	Class 1,000	Degassing double packing	Class 10
	SL-PHFRQ			SCM435 [ H ]Hardness: 30 to 35HRC	Electroless Nickel Plating	Degreasing	General environment	Anti-rust packing	General environment
	SH-PHFRQ					Precision cleaning	Class 1,000	Degassing double packing	Class 10

[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the

details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the specification table.

Specification Table

Part Number	-	L	-	F	-	P	-	T	-	Q
SL-SSFRQ15	-	150	-	F15	-	P8	-	T15	-	Q8
SH-SSFRQ20	-	325	-	F25	-	P10	-	T25	-	Q10
SHD-SSFRQ30	-	400	-	F28	-	P20	-	T28	-	Q20

(1) D Tolerance h9 (Cold-drawn) / P, Q Tolerance h7 (2) D Tolerance h9 (Cold-drawn) / P, Q Tolerance g6
■SUS304

Part Number			0.1 mm Increments		1 mm Increments	(Y) max.
Type		D	L	F, T	P, Q	(Y) max.
(1) D part h9 / P, Q Tol. h7 SL-SSFRMHQ SH-SSFRMHQ SHD-SSFRMHQ	(2) D part h9 / P, Q Tol. g6 SL-SSFRMGQ SH-SSFRMGQ SHD-SSFRMGQ	6	15.0 to 496.0	2 ≤ F ≤ P × 5 2 ≤ T ≤ Q × 5	3, 4, 5	500
		8	15.0 to 496.0		3 ≤ P, Q < D	500
		10	15.0 to 796.0			800
		12	15.0 to 800.0			804
		15	15.0 to 800.0		4 ≤ P, Q < D
		16	15.0 to 800.0		4 ≤ P, Q < D
		20	24.0 to 800.0		5 ≤ P, Q < D
		25	24.0 to 800.0		8 ≤ P, Q < D
		30	24.0 to 800.0		8 ≤ P, Q < D
		35	40.0 to 800.0		16 ≤ P, Q < D

■S45C Equivalent

Part Number			0.1 mm Increments		1 mm Increments	(Y) max.
Type		D	L	F, T	P, Q	(Y) max.
(1) D part h9 / P, Q Tol. h7 SL-PSFRMHQ SH-PSFRMHQ	(2) D part h9 / P, Q Tol. g6 SL-PSFRMGQ SH-PSFRMGQ	6	15.0 to 496.0	2 ≤ F ≤ P × 5 2 ≤ T ≤ Q × 5	3, 4, 5	500
		8	15.0 to 496.0		3 ≤ P, Q < D	500
		10	15.0 to 796.0			800
		12	15.0 to 800.0			804
		13	15.0 to 800.0		4 ≤ P, Q < D
		15	15.0 to 800.0
		16	15.0 to 800.0
		17	24.0 to 800.0		5 ≤ P, Q < D
		18	24.0 to 800.0
		20	24.0 to 800.0
		22	24.0 to 800.0		6 ≤ P, Q < D
		25	24.0 to 800.0		8 ≤ P, Q < D
		30	24.0 to 800.0		8 ≤ P, Q < D
		35	40.0 to 800.0		16 ≤ P, Q < D

(3) h7 (Ground) Type
■SUS304

Part Number		0.1 mm Increments		1 mm Increments	(Y) max.
Type	D	L	F, T	P, Q	(Y) max.
SL-SSFRHQ SH-SSFRHQ SHD-SSFRHQ	6	15.0 to 496.0	2 ≤ F ≤ P × 5 2 ≤ T ≤ Q × 5	3, 4, 5	500
	8	15.0 to 496.0		3 ≤ P, Q < D	500
	10	15.0 to 796.0			800
	12	15.0 to 800.0			804
	15	15.0 to 800.0		4 ≤ P, Q < D
	17	24.0 to 800.0		5 ≤ P, Q < D
	20	24.0 to 800.0		5 ≤ P, Q < D
	25	24.0 to 800.0		8 ≤ P, Q < D
	30	24.0 to 800.0		8 ≤ P, Q < D
	35	40.0 to 800.0		16 ≤ P, Q < D
	40	40.0 to 800.0
	50	40.0 to 800.0

■S45C Equivalent

Part Number		0.1 mm Increments		1 mm Increments	(Y) max.
Type	D	L	F, T	P, Q	(Y) max.
SL-PSFRHQ SH-PSFRHQ	6	15.0 to 496.0	2 ≤ F ≤ P × 5 2 ≤ T ≤ Q × 5	3, 4, 5	500
	8	15.0 to 496.0		3 ≤ P, Q < D	500
	10	15.0 to 796.0			800
	12	15.0 to 800.0			804
	15	15.0 to 800.0		4 ≤ P, Q < D
	17	24.0 to 800.0		5 ≤ P, Q < D
	20	24.0 to 800.0		5 ≤ P, Q < D
	25	24.0 to 800.0		8 ≤ P, Q < D
	30	24.0 to 800.0		8 ≤ P, Q < D
	35	40.0 to 800.0		16 ≤ P, Q < D
	40	40.0 to 800.0
	50	40.0 to 800.0

(4) g6 (Ground) Type
■SUS304

Part Number		0.1 mm Increments		1 mm Increments	(Y) max.
Type	D	L	F, T	P, Q	(Y) max.
SL-SSFRQ SH-SSFRQ SHD-SSFRQ	6	15.0 to 496.0	2 ≤ F ≤ P × 5 2 ≤ T ≤ Q × 5	3, 4, 5	500
	8	15.0 to 496.0		3 ≤ P, Q < D	500
	10	15.0 to 796.0			800
	12	15.0 to 800.0			804
	13	15.0 to 800.0		4 ≤ P, Q < D
	15	15.0 to 800.0
	16	15.0 to 800.0
	17	24.0 to 800.0		5 ≤ P, Q < D
	18	24.0 to 800.0
	20	24.0 to 800.0
	22	24.0 to 800.0		6 ≤ P, Q < D
	25	24.0 to 800.0		8 ≤ P, Q < D
	30	24.0 to 800.0		8 ≤ P, Q < D
	35	40.0 to 800.0		16 ≤ P, Q < D
	40	40.0 to 800.0
	50	40.0 to 800.0

[ ! ] When D - P (Q) ≤ 2, chamfer C at the step is 0.2 or less.
[ ! ] For P and Q Dimensions 27, 31, 33, 34, 36, 37, 38, 39, 41, 42, 43, 44, 46, 47, 48, 49 cannot be specified.

■S45C Equivalent

Part Number		0.1 mm Increments		1 mm Increments	(Y) max.
Type	D	L	F, T	P, Q	(Y) max.
SL-PSFRQ SH-PSFRQ	6	15.0 to 496.0	2 ≤ F ≤ P × 5 2 ≤ T ≤ Q × 5	3, 4, 5	500
	8	15.0 to 496.0		3 ≤ P, Q < D	500
	10	15.0 to 796.0			800
	12	15.0 to 800.0			804
	13	15.0 to 800.0		4 ≤ P, Q < D
	15	15.0 to 800.0
	16	15.0 to 800.0
	17	24.0 to 800.0		5 ≤ P, Q < D
	18	24.0 to 800.0
	20	24.0 to 800.0
	22	24.0 to 800.0		6 ≤ P, Q < D
	25	24.0 to 800.0		8 ≤ P, Q < D
	30	24.0 to 800.0		8 ≤ P, Q < D
	35	40.0 to 800.0		16 ≤ P, Q < D
	40	40.0 to 800.0
	50	40.0 to 800.0

[ ! ] When D - P (Q) ≤ 2, chamfer C at the step is 0.2 or less.
[ ! ] For P and Q Dimensions 27, 31, 33, 34, 36, 37, 38, 39, 41, 42, 43, 44, 46, 47, 48, 49 cannot be specified.

■SCM435

Part Number		0.1 mm Increments		1 mm Increments	(Y) max.
Type	D	L	F, T	P, Q
SL-PHFRQ SH-PHFRQ	15	15.0 to 800.0	2 ≤ F ≤ P × 5 2 ≤ T ≤ Q × 5	4 ≤ P, Q < D	804
	20	24.0 to 800.0
	25	24.0 to 800.0		8 ≤ P, Q < D
	30	24.0 to 800.0
	35	40.0 to 800.0		16 ≤ P, Q < D
	40	40.0 to 800.0
	50	40.0 to 800.0

[ ! ] When D - P (Q) ≤ 2, chamfer C at the step is 0.2 or less.
[ ! ] For P and Q Dimensions 27, 31, 33, 34, 36, 37, 38, 39, 41, 42, 43, 44, 46, 47, 48, 49 cannot be specified.

Alterations

Part Number	-	L	-	F	-	P	-	T	-	Q	-	(KC, WKC, FC, etc.)
SH-SSFRQ30	-	300	-	F25	-	P10	-	T25	-	Q10	-	KC40-A20

Alterations
Code

Alteration Details

Applicable Conditions

Ordering Example

Keyway at One Location

KC, A = 0.1 mm Increments

[ ! ] When the keyway position is less than 1 mm away from the end face,
R is not applied.

[ ! ] Key Length ≤ 100
[ NG ] Not applicable when Shaft Dia. ≤ ⌀5

SH-SSFRQ30-300-F25-P10-T25-Q10-KC20-A10

WKC

Keyways at Two Locations

WKC, C, K, E = 0.1 mm Increments

[ ! ] When the keyway position is less than 1 mm away from the end face,
R is not applied.

[ ! ] Key Length ≤ 100
[ NG ] Not applicable when Shaft Dia. ≤ ⌀5

SH-SSFRQ30-300-F25-P10-T25-Q10-WKC5-C20-K5-E10

Keyway (1 Location (for 4th Location))

KZ, Z = 0.1 mm Increments

[ ! ] When the keyway position is less than 1 mm away from the end face,
R is not applied.

[ ! ] Key Length ≤ 100 [ NG ] Not applicable when Shaft Dia. ≤ ø5
[ ! ] Applicable only when combined with both KC and WKC

SH-SSFRQ30-300-F25-P10-T25-Q10-KC5-A10-WKC20-C10
-K60-E10-KZ100-Z10

PKC, QKC

Keyway on Step P (0 Point on the End Face)

PKC, QKC = 0.1 mm Increments
[ ! ] Keyway Length ≤ 70
[ NG ] Not applicable when P ≤ 5

SH-SSFRQ30-300-F25-P10-T25-Q10-PKC20.0

PP, QQ

Keyway on Step P (Position Specification)

PP, PK = 0.1 mm Increments QQ, QK = 0.1 mm Increments
[ ! ] Keyway Length ≤ 70
[ NG ] Not applicable when P ≤ 5

SH-SSFRQ30-300-F25-P10-T25-Q10-PP10-PK10

PV, QV

Multiple keyways on step P

PV, PW = 0.1 mm Increments QV, QW = 0.1 mm Increments
[ ! ] Keyway Length ≤ 70
[ NG ] Not applicable when P ≤ 5
[ ! ] Applicable only when combined with PP or QQ

SH-SSFRQ30-300-F30-P10-T25-Q10-PP5-PK5-PV15-PW10

TL, TR

Retaining Ring Groove on D Part

TL, TR = 0.1 mm Increments
[ ! ] 2 ≤ TL(TR) + F(T) ≤ 150　

SH-SSFRQ30-300-F25-P10-T25-Q10-TL5-TR5

TF, TT

Retaining Ring Groove on Step

TF, TT = 0.1 mm Increments
[ ! ] 2 ≤ TF(TT) ≤ 150

SH-SSFRQ30-300-F25-P10-T25-Q10-TF5

Set Screw Flat at One Location

FC, G = 1 mm Increments
[ ! ] G ≤ 70

SH-SSFRQ30-300-F25-P10-T25-Q10-FC10-G3

WFC

Set Screw Flats at Two Locations

WFC, J, W, V = 1 mm Increments
[ ! ] J, V ≤ 70

SH-SSFRQ30-300-F25-P10-T25-Q10-WFC10-J15-W10-V20

SFC

Set Screw Flat, 2 Set Screw Flats (Angle Specified)

SFC, SG = 1 mm Increments AG = 15° Increments
[ ! ] SG ≤ 70

SH-SSFRQ30-300-F25-P10-T25-Q10-SFC10-SG3-AG120

PFC, QFC

Set Screw Flat on Step

PFC, LC = 1 mm Increments QFC, RC = 1 mm Increments
[ ! ] LC, RC ≤ 70

SH-SSFRQ30-300-F25-P10-T25-Q10-PFC5-LC10

KWC

Set Screw Flat, 2 Set Screw Flats on Both Ends

KWC = 1 mm Increments
[ ! ]KWC ≤ F, T [ ! ] Y ≤ 680
[ NG ] Not applicable to P (Q) = 4 or less

SH-SSFRQ30-300-F25-P10-T25-Q10-KWC25

Set Screw Flat, Chamfering Depth Configurable

WC = 0.1 mm Increments
[ NG ] D dimensions 6, 13, 16, 17, 18, 22 are not available
[ ! ] Only when KWC is specified, WC is available

D	WC
8, 10, 12	5 ≤ WC ≤ P(Q)-1
15, 20	10 ≤ WC ≤ P(Q)-1
25 to 50	15 ≤ WC ≤ P(Q)-1

SH-SSFRQ30-300-F25-P20-T25-Q20-KWC25-WC18.0

Slit Cam Groove

UC = 1 mm Increments
[ NG ] Not applicable to D13 or more

SH-SSFRQ10-300-F25-P8-T25-Q8-UC10

LKC

L Dimension Tolerance Change

L < 500... L±0.05 L ≥ 500...L±0.1

SH-SSFRQ30-300-F25-P10-T25-Q10-LKC

Wrench Flats

SC = 1 mm Increments

SH-SSFRQ30-300-F25-P10-T25-Q10-SC10

CKC

Concentricity Change

Change the concentricity to 0.02.
[ NG ] Not applicable when D part h9
[ ! ] For Lmax, see the table on the right

D	Lmax
6 to 22	450
25 to 50	600

SH-SSFRQ30-300-F25-P10-T25-Q10-CKC

CP, CQ

Change of Step Chamfering

Change the size of the chamfer on the step　
* Select CP and CQ from the table
[ ! ] Only values provided on the applicable diameter table are applicable

Chamfering	Applicable Diameter (P·Q)
C2	ø6 to ø49
C3	ø8 to ø49
C4	φ10 to φ49
C5	φ12 to φ49

SH-SSFRQ30-300-F25-P10-T25-Q10-CP4

PM, QM

Addition of Tapped to Step

PM, QM = Selected from M2, 2.6, 3·4, 5, 6, 8, 10, 12, 24, 30
[ ! ] (P - PM)/2 ≥ 0.5
[ ! ] (P(Q) - PM(QM))/2 ≥ 0.5

SH-SSFRQ30-300-F25-P10-T25-Q10-PM5-QM5

[ ! ] When combined with other alterations, ±2 degree phase differential may occur. Provide 2 mm or more clearance between this alteration and others.
[ ! ] When multiple keyways or set screw flats are specified, they are added in the same plane. When the distance of the alterations are over 500 mm, ± 2 degree phase difference may occur.

Keyway Dimensions

Shaft Dia.	b		t		r
Shaft Dia.	Reference Dimension	Tolerance (N9)	Reference Dimension	Tolerance	r
6 to 7	2	-0.004 -0.029	1.2	+0.1 0	0.08 to 0.16
8 to 10	3	-0.004 -0.029	1.8
11 to 12	4	0 -0.03	2.5
13 to 17	5		3.0		0.16 to 0.25
18 to 22	6		3.5
23 to 30	8	0 -0.036	4.0	+0.2 0
31 to 38	10	0 -0.036	5.0		0.25 to 0.4
39 to 44	12	0 -0.043	5.0
45 to 50	14	0 -0.043	5.5

[ ! ] b ≤ A, E, C ≤ 100
[ ! ] If 3 keyways are required, use both KC and WKC.
[ ! ] If 4 keyways are required, use KC, WKC, and KZ. (KZ is applicable only when combined with both KC and WKC)
[ NG ] Not applicable to D = 2 to 5.
[ ! ] The example below shows the keyway shape for the specs KC, WKC, K = 0, KC + A ≥ L and WKC + C + K + E > L.

[ ! ] Although keyway(s) and set screw flats are added in the same plane, ±2 degree phase differential may occur.
[ ! ] When the keyway position is less than 1 mm away from the end face, R is not applied.

Detailed Dimension Retaining Ring Groove for Rotary Shafts

Shaft Dia.	d Tolerance		Slot Width (m) Tolerance		Applicable Retaining Ring
2	1.2	+0.06 0	0.4	+0.05 0	JIS E Type 1.2
2.5	1.5		0.5		JIS E Type 1.5
3	2		0.5		JIS E Type 2
4	3		0.7	+0.1 0	JIS E Type 3
5	4	+0.075 0			JIS E Type 4
6	5				JIS E Type 5
7	6		0.9		JIS E Type 6
8	7	+0.09 0			JIS E Type 7
9	8	+0.09 0			JIS E Type 8
10	9.6	0/-0.09	1.15	+0.14 0	JIS C Type 10
11	10.5	0 -0.11			JIS C Type 11
12	11.5				JIS C Type 12
13	12.4				JIS C Type 13
14	13.4				JIS C Type 14
15	14.3				JIS C Type 15
16	15.2				JIS C Type 16
17	16.2				JIS C Type 17
18	17		1.35		JIS C Type 18
19	18		1.35		JIS C Type 19

Shaft Dia.	d Tolerance		Slot Width (m) Tolerance		Applicable Retaining Ring
20	19	0 -0.21	1.35	+0.14 0	JIS C Type 20
21	20				JIS C Type 21
22	21				JIS C Type 22
23	22				JIS C Type 23
24	22.9				JIS C Type 24
25	23.9				JIS C Type 25
26	24.9				JIS C Type 26
28	26.6		1.65		JIS C Type 28
29	27.6				JIS C Type 29
30	28.6				JIS C Type 30
32	30.3	0 -0.25			JIS C Type 32
35	33				JIS C Type 35
40	38		1.9		JIS C Type 40
45	42.5		1.9		JIS C Type 45
50	47		2.2		JIS C Type 50

[ ! ] 2 ≤ TL(TR) + F(T) ≤ 150, 2 ≤ TF(TT) ≤ 150
[ ! ] An applicable retaining ring is included in the retaining ring groove.

Cleaning Process

· Degreasing (Part Number: SL-□□)

* Stainless steel products may be used with alkaline hot pure water. There is no change in cleanliness.
* If the surface treatment is low-temperature black chrome plating, IPA cleaning will be applied.

Working Environment: General environment
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning		High-pressure jet washing (Ro water) followed by pure water cleaning		Oil-free Compressor Used		Anti-rust single packing

· Precision cleaning (Part Number: SH-□□)

				Working Environment: Class 1,000				Working Environment: Class 10
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning		High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning		Use pure water (13 MΩ·cm)		Use nitrogen blow		Conducted on a clean bench in a Class 10 clean environment

· Electrolytic polishing + precision cleaning (Part Number: SHD-□□)

						Working Environment: Class 1,000				Working Environment: Class 10
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning		Electrolytic polishing with an electrolytic polishing layer according to the material		High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning		Use warm pure water (13 MΩ·cm)		Use nitrogen blow		Conducted on a clean bench in a Class 10 clean environment

Packaging Example

For degreasing: (Part Number: SL-□□)	For precision cleaning or electrolytic polishing + precision cleaning:
For degreasing: (Part Number: SL-□□)	(Part Number: SH-□□/SHD-□□)
	For austenitic stainless steel and aluminum materials	For iron and martensitic stainless steel materials

Depending on some products and sizes, packaging type may vary.	[ ! ] Both the first and second layer packaging are degassed.	[ ! ] A desiccant is included as an anti-rust measure. There is one desiccant per package.

Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method	Product Part Number	Packaging Type	Effects Compared to Uncleaned Product	Environment (Standard)	Use Case and Process
Degreasing	SL-□□	Anti-rust packing	Oil removal	General environment	Regular assembly process
Degreasing	SL-□□	Anti-rust packing	Oil removal	General environment	Post battery assembly process
Precision cleaning	SH-□□	Degassing double packing	Oil removal Dust removal	Clean environment (Class 10 to 1,000)	Battery assembly process
					LCD-related post assembly process
					In-vehicle camera assembly process
Electrolytic polishing + precision cleaning	SHD-□□	Degassing double packing	Oil removal Dust removal Outgas reduction	Vacuum environment Clean environment (Class 10 to 1,000)	Pre-semiconductor process
					Liquid crystal deposition process
					Pre-OLED process

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
SH-SSFRHQ6-[15-496/0.1]-F[2-25/0.1]-P[3-5/1]-T[2-25/0.1]-Q[3-5/1]
SH-SSFRHQ8-[15-496/0.1]-F[2-35/0.1]-P[3-7/1]-T[2-35/0.1]-Q[3-7/1]
SH-SSFRHQ10-[15-796/0.1]-F[2-45/0.1]-P[3-9/1]-T[2-45/0.1]-Q[3-9/1]
SH-SSFRHQ12-[15-800/0.1]-F[2-55/0.1]-P[3-11/1]-T[2-55/0.1]-Q[3-11/1]
SH-SSFRHQ15-[15-800/0.1]-F[2-70/0.1]-P[4-14/1]-T[2-70/0.1]-Q[4-14/1]
SH-SSFRHQ17-[24-800/0.1]-F[2-80/0.1]-P[5-16/1]-T[2-80/0.1]-Q[5-16/1]
SH-SSFRHQ20-[24-800/0.1]-F[2-95/0.1]-P[5-19/1]-T[2-95/0.1]-Q[5-19/1]
SH-SSFRHQ25-[24-800/0.1]-F[2-120/0.1]-P[8-24/1]-T[2-120/0.1]-Q[8-24/1]
SH-SSFRHQ30-[24-800/0.1]-F[2-145/0.1]-P[8-29/1]-T[2-145/0.1]-Q[8-29/1]
SH-SSFRHQ35-[40-800/0.1]-F[2-170/0.1]-P[16-34/1]-T[2-170/0.1]-Q[16-34/1]
SH-SSFRHQ40-[40-800/0.1]-F[2-195/0.1]-P[16-39/1]-T[2-195/0.1]-Q[16-39/1]
SH-SSFRHQ50-[40-800/0.1]-F[2-245/0.1]-P[16-49/1]-T[2-245/0.1]-Q[16-49/1]
SH-SSFRMGQ8-[15-496/0.1]-F[2-35/0.1]-P[3-7/1]-T[2-35/0.1]-Q[3-7/1]
SH-SSFRMGQ10-[15-796/0.1]-F[2-45/0.1]-P[3-9/1]-T[2-45/0.1]-Q[3-9/1]
SH-SSFRMGQ12-[15-800/0.1]-F[2-55/0.1]-P[3-11/1]-T[2-55/0.1]-Q[3-11/1]
SH-SSFRMGQ15-[15-800/0.1]-F[2-70/0.1]-P[4-14/1]-T[2-70/0.1]-Q[4-14/1]
SH-SSFRMGQ20-[24-800/0.1]-F[2-95/0.1]-P[5-19/1]-T[2-95/0.1]-Q[5-19/1]
SH-SSFRMGQ25-[24-800/0.1]-F[2-120/0.1]-P[8-24/1]-T[2-120/0.1]-Q[8-24/1]
SH-SSFRMGQ30-[24-800/0.1]-F[2-145/0.1]-P[8-29/1]-T[2-145/0.1]-Q[8-29/1]
SH-SSFRMGQ35-[40-800/0.1]-F[2-170/0.1]-P[16-34/1]-T[2-170/0.1]-Q[16-34/1]
SH-SSFRMHQ8-[15-496/0.1]-F[2-35/0.1]-P[3-7/1]-T[2-35/0.1]-Q[3-7/1]
SH-SSFRMHQ10-[15-796/0.1]-F[2-45/0.1]-P[3-9/1]-T[2-45/0.1]-Q[3-9/1]
SH-SSFRMHQ12-[15-800/0.1]-F[2-55/0.1]-P[3-11/1]-T[2-55/0.1]-Q[3-11/1]
SH-SSFRMHQ15-[15-800/0.1]-F[2-70/0.1]-P[4-14/1]-T[2-70/0.1]-Q[4-14/1]
SH-SSFRMHQ20-[24-800/0.1]-F[2-95/0.1]-P[5-19/1]-T[2-95/0.1]-Q[5-19/1]
SH-SSFRMHQ25-[24-800/0.1]-F[2-120/0.1]-P[8-24/1]-T[2-120/0.1]-Q[8-24/1]
SH-SSFRMHQ30-[24-800/0.1]-F[2-145/0.1]-P[8-29/1]-T[2-145/0.1]-Q[8-29/1]
SH-SSFRMHQ35-[40-800/0.1]-F[2-170/0.1]-P[16-34/1]-T[2-170/0.1]-Q[16-34/1]
SH-SSFRQ6-[15-496/0.1]-F[2-25/0.1]-P[3-5/1]-T[2-25/0.1]-Q[3-5/1]
SH-SSFRQ8-[15-496/0.1]-F[2-35/0.1]-P[3-7/1]-T[2-35/0.1]-Q[3-7/1]
SH-SSFRQ10-[15-796/0.1]-F[2-45/0.1]-P[3-9/1]-T[2-45/0.1]-Q[3-9/1]
SH-SSFRQ12-[15-800/0.1]-F[2-55/0.1]-P[3-11/1]-T[2-55/0.1]-Q[3-11/1]
SH-SSFRQ13-[15-800/0.1]-F[2-60/0.1]-P[4-12/1]-T[2-60/0.1]-Q[4-12/1]
SH-SSFRQ15-[15-800/0.1]-F[2-70/0.1]-P[4-14/1]-T[2-70/0.1]-Q[4-14/1]
SH-SSFRQ16-[15-800/0.1]-F[2-75/0.1]-P[4-15/1]-T[2-75/0.1]-Q[4-15/1]
SH-SSFRQ17-[24-800/0.1]-F[2-80/0.1]-P[5-16/1]-T[2-80/0.1]-Q[5-16/1]
SH-SSFRQ18-[24-800/0.1]-F[2-85/0.1]-P[5-17/1]-T[2-85/0.1]-Q[5-17/1]
SH-SSFRQ20-[24-800/0.1]-F[2-95/0.1]-P[5-19/1]-T[2-95/0.1]-Q[5-19/1]
SH-SSFRQ22-[24-800/0.1]-F[2-105/0.1]-P[6-21/1]-T[2-105/0.1]-Q[6-21/1]
SH-SSFRQ25-[24-800/0.1]-F[2-120/0.1]-P[8-24/1]-T[2-120/0.1]-Q[8-24/1]
SH-SSFRQ30-[24-800/0.1]-F[2-145/0.1]-P[8-29/1]-T[2-145/0.1]-Q[8-29/1]
SH-SSFRQ35-[40-800/0.1]-F[2-170/0.1]-P[16-34/1]-T[2-170/0.1]-Q[16-34/1]
SH-SSFRQ40-[40-800/0.1]-F[2-195/0.1]-P[16-39/1]-T[2-195/0.1]-Q[16-39/1]
SH-SSFRQ50-[40-800/0.1]-F[2-245/0.1]-P[16-49/1]-T[2-245/0.1]-Q[16-49/1]
SHD-SSFRHQ6-[15-496/0.1]-F[2-25/0.1]-P[3-5/1]-T[2-25/0.1]-Q[3-5/1]
SHD-SSFRHQ8-[15-496/0.1]-F[2-35/0.1]-P[3-7/1]-T[2-35/0.1]-Q[3-7/1]
SHD-SSFRHQ10-[15-796/0.1]-F[2-45/0.1]-P[3-9/1]-T[2-45/0.1]-Q[3-9/1]
SHD-SSFRHQ12-[15-800/0.1]-F[2-55/0.1]-P[3-11/1]-T[2-55/0.1]-Q[3-11/1]
SHD-SSFRHQ15-[15-800/0.1]-F[2-70/0.1]-P[4-14/1]-T[2-70/0.1]-Q[4-14/1]
SHD-SSFRHQ17-[24-800/0.1]-F[2-80/0.1]-P[5-16/1]-T[2-80/0.1]-Q[5-16/1]
SHD-SSFRHQ20-[24-800/0.1]-F[2-95/0.1]-P[5-19/1]-T[2-95/0.1]-Q[5-19/1]
SHD-SSFRHQ25-[24-800/0.1]-F[2-120/0.1]-P[8-24/1]-T[2-120/0.1]-Q[8-24/1]
SHD-SSFRHQ30-[24-800/0.1]-F[2-145/0.1]-P[8-29/1]-T[2-145/0.1]-Q[8-29/1]
SHD-SSFRHQ35-[40-800/0.1]-F[2-170/0.1]-P[16-34/1]-T[2-170/0.1]-Q[16-34/1]
SHD-SSFRHQ40-[40-800/0.1]-F[2-195/0.1]-P[16-39/1]-T[2-195/0.1]-Q[16-39/1]
SHD-SSFRHQ50-[40-800/0.1]-F[2-245/0.1]-P[16-49/1]-T[2-245/0.1]-Q[16-49/1]
SHD-SSFRMGQ8-[15-496/0.1]-F[2-35/0.1]-P[3-7/1]-T[2-35/0.1]-Q[3-7/1]
SHD-SSFRMGQ10-[15-796/0.1]-F[2-45/0.1]-P[3-9/1]-T[2-45/0.1]-Q[3-9/1]
SHD-SSFRMGQ12-[15-800/0.1]-F[2-55/0.1]-P[3-11/1]-T[2-55/0.1]-Q[3-11/1]
SHD-SSFRMGQ15-[15-800/0.1]-F[2-70/0.1]-P[4-14/1]-T[2-70/0.1]-Q[4-14/1]

Standard Unit Price	Minimum order quantity	Days to Ship	Shaft Dia. D (mm)	D Tolerance	Length L (mm)	Cleaning Method	Wrench Flatted	F (㎜)	P (㎜)	Q (㎜)	T (㎜)	Material Certificate
-	1 Piece(s)	6 Day(s) or more	6	h7 (Ground)	15 ～ 496	Precision Cleaning	Wrench flats option (alteration)	2 ～ 25	3 ～ 5	3 ～ 5	2 ～ 25	Available
-	1 Piece(s)	6 Day(s) or more	8	h7 (Ground)	15 ～ 496	Precision Cleaning	Wrench flats option (alteration)	2 ～ 35	3 ～ 7	3 ～ 7	2 ～ 35	Available
-	1 Piece(s)	6 Day(s) or more	10	h7 (Ground)	15 ～ 796	Precision Cleaning	Wrench flats option (alteration)	2 ～ 45	3 ～ 9	3 ～ 9	2 ～ 45	Available
-	1 Piece(s)	6 Day(s) or more	12	h7 (Ground)	15 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 55	3 ～ 11	3 ～ 11	2 ～ 55	Available
-	1 Piece(s)	6 Day(s) or more	15	h7 (Ground)	15 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 70	4 ～ 14	4 ～ 14	2 ～ 70	Available
-	1 Piece(s)	6 Day(s) or more	17	h7 (Ground)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 80	5 ～ 16	5 ～ 16	2 ～ 80	Available
-	1 Piece(s)	6 Day(s) or more	20	h7 (Ground)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 95	5 ～ 19	5 ～ 19	2 ～ 95	Available
-	1 Piece(s)	6 Day(s) or more	25	h7 (Ground)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 120	8 ～ 24	8 ～ 24	2 ～ 120	Available
-	1 Piece(s)	6 Day(s) or more	30	h7 (Ground)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 145	8 ～ 29	8 ～ 29	2 ～ 145	Available
-	1 Piece(s)	6 Day(s) or more	35	h7 (Ground)	40 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 170	16 ～ 34	16 ～ 34	2 ～ 170	Available
-	1 Piece(s)	6 Day(s) or more	40	h7 (Ground)	40 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 195	16 ～ 39	16 ～ 39	2 ～ 195	Available
-	1 Piece(s)	6 Day(s) or more	50	h7 (Ground)	40 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 245	16 ～ 49	16 ～ 49	2 ～ 245	Available
-	1 Piece(s)	6 Day(s) or more	8	h9 (Cold-drawn)	15 ～ 496	Precision Cleaning	Wrench flats option (alteration)	2 ～ 35	3 ～ 7	3 ～ 7	2 ～ 35	Available
-	1 Piece(s)	6 Day(s) or more	10	h9 (Cold-drawn)	15 ～ 796	Precision Cleaning	Wrench flats option (alteration)	2 ～ 45	3 ～ 9	3 ～ 9	2 ～ 45	Available
-	1 Piece(s)	6 Day(s) or more	12	h9 (Cold-drawn)	15 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 55	3 ～ 11	3 ～ 11	2 ～ 55	Available
-	1 Piece(s)	6 Day(s) or more	15	h9 (Cold-drawn)	15 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 70	4 ～ 14	4 ～ 14	2 ～ 70	Available
-	1 Piece(s)	6 Day(s) or more	20	h9 (Cold-drawn)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 95	5 ～ 19	5 ～ 19	2 ～ 95	Available
-	1 Piece(s)	6 Day(s) or more	25	h9 (Cold-drawn)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 120	8 ～ 24	8 ～ 24	2 ～ 120	Available
-	1 Piece(s)	6 Day(s) or more	30	h9 (Cold-drawn)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 145	8 ～ 29	8 ～ 29	2 ～ 145	Available
-	1 Piece(s)	6 Day(s) or more	35	h9 (Cold-drawn)	40 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 170	16 ～ 34	16 ～ 34	2 ～ 170	Available
-	1 Piece(s)	6 Day(s) or more	8	h9 (Cold-drawn)	15 ～ 496	Precision Cleaning	Wrench flats option (alteration)	2 ～ 35	3 ～ 7	3 ～ 7	2 ～ 35	Available
-	1 Piece(s)	6 Day(s) or more	10	h9 (Cold-drawn)	15 ～ 796	Precision Cleaning	Wrench flats option (alteration)	2 ～ 45	3 ～ 9	3 ～ 9	2 ～ 45	Available
-	1 Piece(s)	6 Day(s) or more	12	h9 (Cold-drawn)	15 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 55	3 ～ 11	3 ～ 11	2 ～ 55	Available
-	1 Piece(s)	6 Day(s) or more	15	h9 (Cold-drawn)	15 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 70	4 ～ 14	4 ～ 14	2 ～ 70	Available
-	1 Piece(s)	6 Day(s) or more	20	h9 (Cold-drawn)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 95	5 ～ 19	5 ～ 19	2 ～ 95	Available
-	1 Piece(s)	6 Day(s) or more	25	h9 (Cold-drawn)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 120	8 ～ 24	8 ～ 24	2 ～ 120	Available
-	1 Piece(s)	6 Day(s) or more	30	h9 (Cold-drawn)	24 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 145	8 ～ 29	8 ～ 29	2 ～ 145	Available
-	1 Piece(s)	6 Day(s) or more	35	h9 (Cold-drawn)	40 ～ 800	Precision Cleaning	Wrench flats option (alteration)	2 ～ 170	16 ～ 34	16 ～ 34	2 ～ 170	Available
-	1 Piece(s)	6 Day(s) or more	6	g6 (Ground)	15 ～ 496	Precision Cleaning	-	2 ～ 25	3 ～ 5	3 ～ 5	2 ～ 25	Available
-	1 Piece(s)	6 Day(s) or more	8	g6 (Ground)	15 ～ 496	Precision Cleaning	-	2 ～ 35	3 ～ 7	3 ～ 7	2 ～ 35	Available
-	1 Piece(s)	6 Day(s) or more	10	g6 (Ground)	15 ～ 796	Precision Cleaning	-	2 ～ 45	3 ～ 9	3 ～ 9	2 ～ 45	Available
-	1 Piece(s)	6 Day(s) or more	12	g6 (Ground)	15 ～ 800	Precision Cleaning	-	2 ～ 55	3 ～ 11	3 ～ 11	2 ～ 55	Available
-	1 Piece(s)	6 Day(s) or more	13	g6 (Ground)	15 ～ 800	Precision Cleaning	-	2 ～ 60	4 ～ 12	4 ～ 12	2 ～ 60	Available
-	1 Piece(s)	6 Day(s) or more	15	g6 (Ground)	15 ～ 800	Precision Cleaning	-	2 ～ 70	4 ～ 14	4 ～ 14	2 ～ 70	Available
-	1 Piece(s)	6 Day(s) or more	16	g6 (Ground)	15 ～ 800	Precision Cleaning	-	2 ～ 75	4 ～ 15	4 ～ 15	2 ～ 75	Available
-	1 Piece(s)	6 Day(s) or more	17	g6 (Ground)	24 ～ 800	Precision Cleaning	-	2 ～ 80	5 ～ 16	5 ～ 16	2 ～ 80	Available
-	1 Piece(s)	6 Day(s) or more	18	g6 (Ground)	24 ～ 800	Precision Cleaning	-	2 ～ 85	5 ～ 17	5 ～ 17	2 ～ 85	Available
-	1 Piece(s)	6 Day(s) or more	20	g6 (Ground)	24 ～ 800	Precision Cleaning	-	2 ～ 95	5 ～ 19	5 ～ 19	2 ～ 95	Available
-	1 Piece(s)	6 Day(s) or more	22	g6 (Ground)	24 ～ 800	Precision Cleaning	-	2 ～ 105	6 ～ 21	6 ～ 21	2 ～ 105	Available
-	1 Piece(s)	6 Day(s) or more	25	g6 (Ground)	24 ～ 800	Precision Cleaning	-	2 ～ 120	8 ～ 24	8 ～ 24	2 ～ 120	Available
-	1 Piece(s)	6 Day(s) or more	30	g6 (Ground)	24 ～ 800	Precision Cleaning	-	2 ～ 145	8 ～ 29	8 ～ 29	2 ～ 145	Available
-	1 Piece(s)	6 Day(s) or more	35	g6 (Ground)	40 ～ 800	Precision Cleaning	-	2 ～ 170	16 ～ 34	16 ～ 34	2 ～ 170	Available
-	1 Piece(s)	6 Day(s) or more	40	g6 (Ground)	40 ～ 800	Precision Cleaning	-	2 ～ 195	16 ～ 39	16 ～ 39	2 ～ 195	Available
-	1 Piece(s)	6 Day(s) or more	50	g6 (Ground)	40 ～ 800	Precision Cleaning	-	2 ～ 245	16 ～ 49	16 ～ 49	2 ～ 245	Available
-	1 Piece(s)	6 Day(s) or more	6	h7 (Ground)	15 ～ 496	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 25	3 ～ 5	3 ～ 5	2 ～ 25	Available
-	1 Piece(s)	6 Day(s) or more	8	h7 (Ground)	15 ～ 496	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 35	3 ～ 7	3 ～ 7	2 ～ 35	Available
-	1 Piece(s)	6 Day(s) or more	10	h7 (Ground)	15 ～ 796	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 45	3 ～ 9	3 ～ 9	2 ～ 45	Available
-	1 Piece(s)	6 Day(s) or more	12	h7 (Ground)	15 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 55	3 ～ 11	3 ～ 11	2 ～ 55	Available
-	1 Piece(s)	6 Day(s) or more	15	h7 (Ground)	15 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 70	4 ～ 14	4 ～ 14	2 ～ 70	Available
-	1 Piece(s)	6 Day(s) or more	17	h7 (Ground)	24 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 80	5 ～ 16	5 ～ 16	2 ～ 80	Available
-	1 Piece(s)	6 Day(s) or more	20	h7 (Ground)	24 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 95	5 ～ 19	5 ～ 19	2 ～ 95	Available
-	1 Piece(s)	6 Day(s) or more	25	h7 (Ground)	24 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 120	8 ～ 24	8 ～ 24	2 ～ 120	Available
-	1 Piece(s)	6 Day(s) or more	30	h7 (Ground)	24 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 145	8 ～ 29	8 ～ 29	2 ～ 145	Available
-	1 Piece(s)	6 Day(s) or more	35	h7 (Ground)	40 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 170	16 ～ 34	16 ～ 34	2 ～ 170	Available
-	1 Piece(s)	6 Day(s) or more	40	h7 (Ground)	40 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 195	16 ～ 39	16 ～ 39	2 ～ 195	Available
-	1 Piece(s)	6 Day(s) or more	50	h7 (Ground)	40 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 245	16 ～ 49	16 ～ 49	2 ～ 245	Available
-	1 Piece(s)	6 Day(s) or more	8	h9 (Cold-drawn)	15 ～ 496	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 35	3 ～ 7	3 ～ 7	2 ～ 35	Available
-	1 Piece(s)	6 Day(s) or more	10	h9 (Cold-drawn)	15 ～ 796	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 45	3 ～ 9	3 ～ 9	2 ～ 45	Available
-	1 Piece(s)	6 Day(s) or more	12	h9 (Cold-drawn)	15 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 55	3 ～ 11	3 ～ 11	2 ～ 55	Available
-	1 Piece(s)	6 Day(s) or more	15	h9 (Cold-drawn)	15 ～ 800	Electrolytic Polishing + Precision Cleaning	Wrench flats option (alteration)	2 ～ 70	4 ～ 14	4 ～ 14	2 ～ 70	Available

Basic Information

Environmentally friendly	RoHS Compliant (10 Substances)	End Shape (Left)	Unfinished	Characteristics/Applications	Clean Washed
Basic Shape	Both Ends Stepped	End Shape (Right)	Straight	Material	SUS304
Hardness	Unhardened	Material Details	SUS304	Keyway	Keyway alteration
Surface Treatment	Not Provided

Configure

132 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Shaft Dia. D(mm)
6

8

10

12

13

15

16

17

18

20

22

25

30

35

40

50
Clear
D Tolerance
- h9 (Cold-drawn)
- h7 (Ground)
- g6 (Ground)
Clear
Length L(mm)
[15-800/0.1mm Unit(s)]
Clear
Cleaning Method
- Degreasing
- Precision Cleaning
- Electrolytic Polishing + Precision Cleaning
Clear
Wrench Flatted
- Wrench flats option (alteration)
Clear
F(㎜)
[2-245/0.1㎜ Unit(s)]
Clear
P(㎜)
[3-49/1㎜ Unit(s)]
Clear
Q(㎜)
[3-49/1㎜ Unit(s)]
Clear
T(㎜)
[2-245/0.1㎜ Unit(s)]
Clear
type
- SH-SSFRHQ
- SH-SSFRMGQ
- SH-SSFRMHQ
- SH-SSFRQ
- SHD-SSFRHQ
- SHD-SSFRMGQ
- SHD-SSFRMHQ
- SHD-SSFRQ
- SL-SSFRHQ
- SL-SSFRMGQ
- SL-SSFRMHQ
- SL-SSFRQ
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

6 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Additional Products in this Category

Tech Support

: Technical Inquiry

How can we improve?

[Clean & Pack] Rotary Shaft - Both Ends Stepped

(i)Caution

Specification Table

Alterations

Part Number

Basic Information

Configure

Specification/Dimensions

Shaft Dia. D(mm)

D Tolerance

Length L(mm)

Cleaning Method

Wrench Flatted

F(㎜)

P(㎜)

Q(㎜)

T(㎜)

type

CAD

Days to Ship

Specify Alterations

Additional Products in this Category

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm
