Flanged Nuts For Aluminum Frames【1-100 Pieces Per Package】
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
Flanged Nuts For Aluminum Frames
It is a fastener for aluminum Frames. this nut usually use for locking brackets, plastic, and metal plate on an aluminum Frames
[Features]
• Suitable for: bolt size M5, M6 and M8
• Material: Carbon Steel Nickel-plated ,anti-rust and Stainless steel
[Applications]
Suitable for assembling machine components with aluminum Frames
Part Number
Configured Part Number is shown.
Product Overview of Nuts

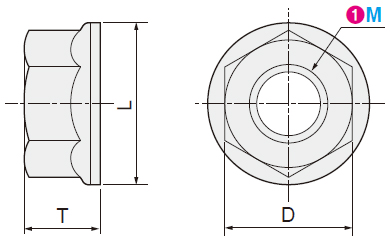

Dimensional Drawing of Nuts
| Type | Material | Surface Treatment |
| LNCFM | Carbon Steel | Zinc Plating |
| LNFMS | Stainless Steel | － |
Specifications Overview of Nuts
Part Number ( Type· M) | － |  Packed sales |
| LNCFM6 | － | 100P |
▪ Flange Nuts
| Part Number |  Packed sales | D | L | T | |
 Type |  M | ||||
| LNCFM | 5 | 100P | 7.8 | 10.3 | 5 |
| 6 | 9.8 | 12.8 | 6 | ||
| 8 | 12.8 | 16.4 | 7 | ||
| LNFMS | 5 | 7.8 | 10.6 | 5 | |
| 6 | 9.8 | 13.2 | 6 | ||
| 8 | 12.8 | 16.8 | 8 | ||
Product Feature of Nuts
For the high anti-rust requirements of the automotive industry, stainless steel specifications are available.
Example Use of Nuts
Related Documents of Nuts
| Recommended product 1 | Recommended product 2 | Recommended product 3 |
| 40 series 4040 aluminum frames slot width 8mm | Sealing strip for aluminum frames | Llight load die-cast bracket for aluminum frames with slot width of 8mm |
 |  |  |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| LNCFM5 |
| LNCFM5-100P |
| LNCFM6 |
| LNCFM6-100P |
| LNCFM8 |
| LNCFM8-100P |
| LNFMS5 |
| LNFMS6 |
| LNFMS6-100P |
| LNFMS8 |
| LNFMS8-100P |
| Part Number | Standard Unit Price | Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Days to Ship | Nominal of Thread M (mm) | Material | Surface Treatment | Sale Type |
|---|---|---|---|---|---|---|---|---|---|
MYR 0.94 | 1 Piece(s) | Available | 1 Day(s) | M5 | [Steel] Steel | Galvanized | Single Sales | ||
MYR 8.08 | 100 Pieces Per Package | 1 Pack(s) | Available | 6 Day(s) | M5 | [Steel] Steel | Galvanized | Packed Sales | |
MYR 0.08 | 1 Piece(s) | Available | 1 Day(s) | M6 | [Steel] Steel | Galvanized | Single Sales | ||
MYR 9.46 | 100 Pieces Per Package | 1 Pack(s) | Available | 6 Day(s) | M6 | [Steel] Steel | Galvanized | Packed Sales | |
MYR 0.14 | 1 Piece(s) | Available | 1 Day(s) | M8 | [Steel] Steel | Galvanized | Single Sales | ||
MYR 14.00 | 100 Pieces Per Package | 1 Pack(s) | Available | 6 Day(s) | M8 | [Steel] Steel | Galvanized | Packed Sales | |
MYR 1.12 | 1 Piece(s) | Available | 5 Day(s) | M5 | Stainless Steel | Not Provided | Single Sales | ||
MYR 0.30 | 1 Piece(s) | Available | 1 Day(s) | M6 | Stainless Steel | Not Provided | Single Sales | ||
MYR 23.43 | 100 Pieces Per Package | 1 Pack(s) | Available | 6 Day(s) | M6 | Stainless Steel | Not Provided | Packed Sales | |
MYR 0.49 | 1 Piece(s) | Available | 1 Day(s) | M8 | Stainless Steel | Not Provided | Single Sales | ||
MYR 46.18 | 100 Pieces Per Package | 1 Pack(s) | Available | 6 Day(s) | M8 | Stainless Steel | Not Provided | Packed Sales |
