Resin Collar - With Guide - POM/MC Nylon
Click this image to zoom it.
Move the mouse over the image to zoom
"Are equipped with the Holder and thus, can be used to retain the Bearing Inner Rings."
(i)Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part Number
Configured Part Number is shown.
[ ! ]Chamfering: C0.5 or less
| Type | [M] Material |
| CLJGJ | Polyacetal - White |
| CLJGK | Polyacetal - Black |
| CLJGM | MC Nylon (Standard Grade - Blue) |
Specification Table
| Part Number | — | V | — | L |
| CLJGJ15 | — | 8 | — | 20 |
| Part Number | V | L 0.5 mm increments | D1 | T | |
| Type | D | ||||
| CLJGJ CLJGK CLJGM | 8 | 3 | 2 to 30 | 5 | 1 |
| 4 | 6 | ||||
| 10 | 3 | 5 | |||
| 4 | 7 | ||||
| 5 | 8 | ||||
| 12 | 4 | 7 | |||
| 5 | 8 | ||||
| 6 | 9 | ||||
| 14 | 4 | 5 to 40 | 7 | 1.5 | |
| 5 | 8 | ||||
| 6 | 9 | ||||
| 8 | 11 | ||||
| 15 | 5 | 8 | |||
| 6 | 9 | ||||
| 8 | 11 | ||||
| 10 | 13 | ||||
| 16 | 5 | 8 | |||
| 6 | 9 | ||||
| 8 | 11 | ||||
| 10 | 13 | ||||
| 20 | 6 | 10 to 50 | 9 | 2 | |
| 8 | 11 | ||||
| 10 | 13 | ||||
| 12 | 16 | ||||
| 25 | 8 | 11 | |||
| 10 | 13 | ||||
| 12 | 16 | ||||
| 15 | 21 | ||||
| 16 | 22 | ||||
| 30 | 10 | 13 | |||
| 12 | 16 | ||||
| 15 | 21 | ||||
| 16 | 22 | ||||
| 20 | 25 | ||||
Alterations
Part Number | — | V | — | L | — | (VKC·MC·WMC·TC) |
CLJGM20 | — | 10 | — | 25 | — | TC5 |
Alterations | I.D. Tolerance | Set Screw Hole (1 location, 2 locations) | T Dimension Change | |||||
 |  |  | ||||||
Code | VKC | MC·WMC | TC | |||||
Spec. | Change the I.D. tolerance to  . Ordering Code VKC [ ! ]D－V ≥ 6 | Adds a tapped hole (coarse thread) at D part. Ordering Code MC3 WMC5 [ ! ]For the condition of the thickness (D - V)/2, see the table below. [ ! ]L ≥ MC·WMC × 3 [ ! ]V ≥ MC·WMC+1 [ ! ] (D－V)/2 ≤ MC·WMC × 2 [ ! ] MC, WMC = Select from the table below | Change T dimension. Ordering Code TC3 Specifiable Range 0.5 to 10 mm (Specify in 0.5 mm increments.) | |||||
|
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| CLJGJ8-[3,4]-[2-30/0.5] |
| CLJGJ10-[3,4,5]-[2-30/0.5] |
| CLJGJ12-[4,5,6]-[2-30/0.5] |
| CLJGJ14-[4,5,6,8]-[5-40/0.5] |
| CLJGJ15-[5,6,8,10]-[5-40/0.5] |
| CLJGJ16-[5,6,8,10]-[5-40/0.5] |
| CLJGJ20-[6,8,10,12]-[10-50/0.5] |
| CLJGJ25-[8,10,12,15,16]-[10-50/0.5] |
| CLJGJ30-[10,12,15,16,20]-[10-50/0.5] |
| CLJGM8-[3,4]-[2-30/0.5] |
| CLJGM10-[3,4,5]-[2-30/0.5] |
| CLJGM12-[4,5,6]-[2-30/0.5] |
| CLJGM14-[4,5,6,8]-[5-40/0.5] |
| CLJGM15-[5,6,8,10]-[5-40/0.5] |
| CLJGM16-[5,6,8,10]-[5-40/0.5] |
| CLJGM20-[6,8,10,12]-[10-50/0.5] |
| CLJGM25-[8,10,12,15,16]-[10-50/0.5] |
| CLJGM30-[10,12,15,16,20]-[10-50/0.5] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Material | O.D. (mm) | Inner Dia. (mm) | Thickness/Length | Material Detail |
|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 5 Day(s) or more | 10 | Polyacetal | 8 | 3 ～ 4 | 2 ～ 30 | Polyacetal | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | Polyacetal | 10 | 3 ～ 5 | 2 ～ 30 | Polyacetal | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | Polyacetal | 12 | 4 ～ 6 | 2 ～ 30 | Polyacetal | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | Polyacetal | 14 | 4 ～ 8 | 5 ～ 40 | Polyacetal | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | Polyacetal | 15 | 5 ～ 10 | 5 ～ 40 | Polyacetal | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | Polyacetal | 16 | 5 ～ 10 | 5 ～ 40 | Polyacetal | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | Polyacetal | 20 | 6 ～ 12 | 10 ～ 50 | Polyacetal | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | Polyacetal | 25 | 8 ～ 16 | 10 ～ 50 | Polyacetal | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | Polyacetal | 30 | 10 ～ 20 | 10 ～ 50 | Polyacetal | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | MC Nylon | 8 | 3 ～ 4 | 2 ～ 30 | MC Nylon | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | MC Nylon | 10 | 3 ～ 5 | 2 ～ 30 | MC Nylon | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | MC Nylon | 12 | 4 ～ 6 | 2 ～ 30 | MC Nylon | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | MC Nylon | 14 | 4 ～ 8 | 5 ～ 40 | MC Nylon | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | MC Nylon | 15 | 5 ～ 10 | 5 ～ 40 | MC Nylon | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | MC Nylon | 16 | 5 ～ 10 | 5 ～ 40 | MC Nylon | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | MC Nylon | 20 | 6 ～ 12 | 10 ～ 50 | MC Nylon | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | MC Nylon | 25 | 8 ～ 16 | 10 ～ 50 | MC Nylon | ||
- | 1 Piece(s) | 5 Day(s) or more | 10 | MC Nylon | 30 | 10 ～ 20 | 10 ～ 50 | MC Nylon |
Loading...

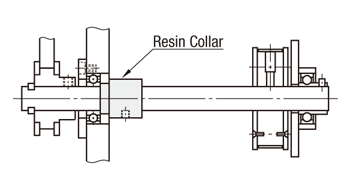

App. Example
Basic Information
| Shape | With Guide | Hole Type | Through Hole | Dimension Selecting Method | Dimension Configurable Type |
|---|---|---|---|---|---|
| Sale Type | Sold Separately |
Specification/Dimensions
-
Material
- MC Nylon
- Polyacetal
-
O.D.(mm)
-
Inner Dia.(mm)
-
Thickness/Length
-
Material Detail
-
type
- CLJGJ
- CLJGM
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 5 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
