Flexible Hoses/Medium Pressure

Click this image to zoom it.

Move the mouse over the image to zoom

MISUMI

A flexible hose that is lighter than high pressure types and has improved usable pressure.

Part Number

Configured Part Number is shown.

Drawing/Specifications
3D Preview
Part Numbers
More Information
Catalog

Type	[ M ]Material
	Hose	Metal Fitting
HOEMF	SUS304	SUS304
HOEMFG	SUS304+Glass Cloth+Hose Bands (2 pcs.)

Specification Table

Part Number	—	Hose Length	—	Shape L	—	Shape R
HOEMF8A	—	1.5	—	LA (Threaded)	—	RB (Tapped)
HOEMF8A	—	1.5	—	LB (Tapped)	—	RA (Threaded)
HOEMF8A	—	1.5	—	LA (Threaded)	—	RA (Threaded)
HOEMF8A	—	1.5	—	LB (Tapped)	—	RB (Tapped)

■Hose Dimensions

Hose Nominal I.D.	I.D. (mm)	O.D. (mm)	Min. Bending Radius (mm)	Constant Screw (N/mm)	Max. Operating Pressure (MPa)
8 A	7.2	12.1	25	2456.9	2.0
10 A	10.5	16.3	35	3470.8
15 A	13	19.6	50	2642.5
20 A	19	26.9	65	3947.2
25 A	25.2	34	80	3457.1
32 A	33.5	42.2	100	4276.8
40 A	39.1	49.1	120	4831.4
50 A	52.6	64.7	140	5222.4

■Swage Fittings Size List

Hose Nominal I.D.	R (PT) Rc (PT)	Shape A			Shape B
Hose Nominal I.D.	R (PT) Rc (PT)	H₁	H₃	L	H₂	H₃	L
8 A	1/4	14	17	61	17	17	61
10 A	3/8	17	21	63	21	21	63
15 A	1/2	22	26	73	26	26	73
20 A	3/4	27	32	77	32	32	77
25 A	1	35	38	90	38	38	90
32 A	1 1/4	46	50	98	50	50	98
40 A	1 1/2	50	55	105.5	55	55	105.5
50 A	2	65	70	119.5	70	70	119.5

Part Number		Hose Length 0.1 m Increments	L Left End Swaged Shape	R Right End Swaged Shape
Type	Hose Nominal I.D.
HOEMF HOEMFG (Glass Cloth Protection)	8 A	0.3 to 2.0	LA (Threaded) LB (Tapped)	RA (Threaded) RB (Tapped)
	10 A
	15 A
	20 A
	25 A
	32 A
	40 A
	50 A	0.4 to 2.0

[ ! ] Hose length includes the Swage Fittings.
[ ! ] Please be careful not to mix up the combination of shapes.

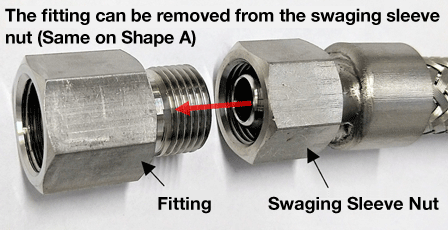

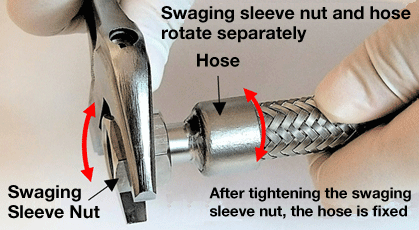

■Swage Fitting Structure (Example: Shape B)

Installation Method

Incorrect		Correct
Excessively small bend radius will dramatically shorten the hose's service life.	×	Use pipes for tight radius sections and keep the hoses within allowed bend radius ranges.	○
Repeatedly flexed sections require extra cautions.	×	Use the curved pipes, and mount tubes in order to form U-shapes.	○
Hose twisting loads due to repeated horizontal motion are very dangerous.	×	Avoid excessive curvatures by attaching rollers that turn with movements of the hose.	○
The hose will be twisted if rotary motions are applied to the mounting points.	×	Avoid the hose twists by mounting rotary fittings.	○
The hose will twist if not mounted in-line with the direction of motion.	×	Be sure to mount the hose in-line with the direction of motion.	○

App. Example

Easy to install even if the piping is misaligned

For absorbing vibrations from equipment that generates vibrations

Flexible Hoses - Medium Pressure Type Related Image 2_ App. Example

Can be bent and used to save labor in construction work

Flexible Hoses - Medium Pressure Type Related Image 3_ App. Example

For piping of moving equipment

Flexible Hoses - Medium Pressure Type Related Image 4_ App. Example

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
HOEMF8A-[0.3-2/0.1]-[LA,LB]-[RA,RB]
HOEMF10A-[0.3-2/0.1]-[LA,LB]-[RA,RB]
HOEMF15A-[0.3-2/0.1]-[LA,LB]-[RA,RB]
HOEMF20A-[0.3-2/0.1]-[LA,LB]-[RA,RB]
HOEMF25A-[0.3-2/0.1]-[LA,LB]-[RA,RB]
HOEMFG8A-[0.3-2/0.1]-[LA,LB]-[RA,RB]
HOEMFG10A-[0.3-2/0.1]-[LA,LB]-[RA,RB]
HOEMFG15A-[0.3-2/0.1]-[LA,LB]-[RA,RB]
HOEMFG20A-[0.3-2/0.1]-[LA,LB]-[RA,RB]
HOEMFG25A-[0.3-2/0.1]-[LA,LB]-[RA,RB]

Standard Unit Price	Minimum order quantity	Days to Ship	RoHS	Hose Material Details	I.D. (Ø)	Metal Fitting Type L	Metal Fitting Type R	Min. Bend Radius (mm)	O.D. (Ø)	Hose Length (m)
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304	7.2	Shape A / Shape B	Shape A / Shape B	25	12.1	0.3 ～ 2
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304	10.5	Shape A / Shape B	Shape A / Shape B	35	16.3	0.3 ～ 2
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304	13	Shape A / Shape B	Shape A / Shape B	50	19.6	0.3 ～ 2
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304	19	Shape A / Shape B	Shape A / Shape B	65	26.9	0.3 ～ 2
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304	25.2	Shape A / Shape B	Shape A / Shape B	80	34	0.3 ～ 2
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304 + Glass Cloth + Hose Clamp (2 pcs.)	7.2	Shape A / Shape B	Shape A / Shape B	25	12.1	0.3 ～ 2
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304 + Glass Cloth + Hose Clamp (2 pcs.)	10.5	Shape A / Shape B	Shape A / Shape B	35	16.3	0.3 ～ 2
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304 + Glass Cloth + Hose Clamp (2 pcs.)	13	Shape A / Shape B	Shape A / Shape B	50	19.6	0.3 ～ 2
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304 + Glass Cloth + Hose Clamp (2 pcs.)	19	Shape A / Shape B	Shape A / Shape B	65	26.9	0.3 ～ 2
-	1 Piece(s)	6 Day(s) or more	10	[Stainless Steel (SUS304)] SUS304 + Glass Cloth + Hose Clamp (2 pcs.)	25.2	Shape A / Shape B	Shape A / Shape B	80	34	0.3 ～ 2

Specifications/Overview

■ Application
·General purpose plumbing, such as control of pipe displacement.
■ Features
·Lightweight compared to High Pressure Type.
·Positive Metal Seat Type requires no maintenance.
·Gasketless design.
■ CAUTION
·Tolerance of a hose length is 0 to 3% of the full length.

Product TOP

Basic Information

Applicable Fluid	Steam / Water / Gas / Oil / Air	Max. Operating Pressure(MPa)	2.0	Type	Flexible Hoses
Connecting Part Type	Swage Fittings	Hose Reinforcement	Provided	Fitting Material	SUS304
Operating Temperature Range(°C)	0::200

Configure

10 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Hose Material Details
- Stainless Steel (SUS304)
  - SUS304
  - SUS304 + Glass Cloth + Hose Clamp (2 pcs.)
Clear
I.D.(Ø)
7.2

10.5

13

19

25.2
Clear
Metal Fitting Type L
- Shape A
- Shape B
Clear
Metal Fitting Type R
- Shape A
- Shape B
Clear
Min. Bend Radius(mm)
25

35

50

65

80
Clear
Hose Length(m)
[0.3-2/0.1m Unit(s)]
Clear
type
- HOEMF
- HOEMFG
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

6 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
