Low Profile Bracket - 8 Series, 10mm Groove
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
It is a low profile extrusion bracket. It is effective for space saving at the time of installation.
Part Number
Configured Part Number is shown.
HBLSS8
HBLSSB8
(Black Anodize)
HBLSD8
[ ! ] The hole positions can be changed.
| Type | [M] Material | [S] Surface Treatment |
| HBLS□8 | A6N01SS−T5 | Anodize |
| HBLSSB8 | Black Anodize |
Specification Table
| Part Number |
| HBLSS8 |
| Part Number | Mass (g) | Applicable Screw, T Nut | Allowable Load (N) | |||
| Screws | Quantity | T Nut | Quantity | |||
| HBLSS8 | 34 | CBM8−15 | 2 | HNTT8−8 | 2 | 1666 |
| HBLSSB8* (Black Anodize) | ||||||
| HBLSD8 | 80 | 4 | 4 | 2352 | ||
Alterations
| Part Number | — | (P·SET·SST·SEU·SSU·SEP·SSP·SEC) |
| HBLSD8 | — | P |
| HBLSS8 | — | SET |
| HBLSD8 | — | P － SET |
| Alternation | Code | Spec. | Applicable Bracket |
| Thin Bracket Thin Bracket Hole Position | P | Changes the screw-mounting hole position for Thin Brackets, HBLSD8 .  | HBLSD8 |
| Alterations | Code | Spec. | Applicable Bracket | |||||||||||||||||||||||||||||||||
| Applicable Screws and Nuts Set Nuts Set | SET SST (Stainless Steel) SEU (Pre-Assembly Insertion Spring Nuts) SSU (Pre-Assembly Insertion Spring Nuts Stainless steel) SEP (Post-Assembly Insertion Spring Nuts) SSP (Post-Assembly Spring Nut Stainless steel) SEC (Captured Washer Screws / Nuts) | Applicable screws and nuts for mounting the bracket on the extrusion come in a set. Example: When HBLSS8 is specified
[ ! ] When specifying other than HBLSS8, check for the applicable screws and nuts. | — | |||||||||||||||||||||||||||||||||
| HBLSS8 | ||||||||||||||||||||||||||||||||||||
| HBLSSB8 | ||||||||||||||||||||||||||||||||||||
| HBLSD8 | ||||||||||||||||||||||||||||||||||||
[ ! ] Included Screw is not RoHS compliant when -SET, -SEU or -SEP is specified for any bracket other than black anodized ones.
Alteration Details
■Set of applicable Screws and Nuts Details
| Alteration Part Number | Screws | Nut | ||||
|---|---|---|---|---|---|---|
| Part Number | Material | Type | Part Number | Material | Stopper | |
| SET | CBM8-15 | Steel | Pre-Assembly | HNTT8-8 | Steel | Not Provided |
| SST | SCB8-15 | Stainless Steel | Pre-Assembly | HNTTSN8-8 | Stainless Steel | Not Provided |
| SEU | CBM8-15 | Steel | Pre-Assembly | HNTU8-8 | Steel | Provided |
| SSU | SCB8-15 | Stainless Steel | Pre-Assembly | SHNTU8-8 | Stainless Steel | Provided |
| SEP | CBM8-15 | Steel | Post-Assembly | HNTP8-8 | Steel | Provided |
| SSP | SCB8-15 | Stainless Steel | Post-Assembly | SHNTP8-8 | Stainless Steel | Provided |
| SEC | HCBST8-20 | Steel (With Washers) | Pre-Assembly | HNTT8-8 | Steel | Not Provided |
■Thin Brackets Hole Position Alteration Type (-P)
Changes the screw-mounting hole position for Thin Brackets.
(1) Since the screws do not interfere with each other, each of bracket side faces can be assembled easily with the extrusion slots in parallel.
(2) Low cost and thin bracket that has achieved space saving of mounting areas

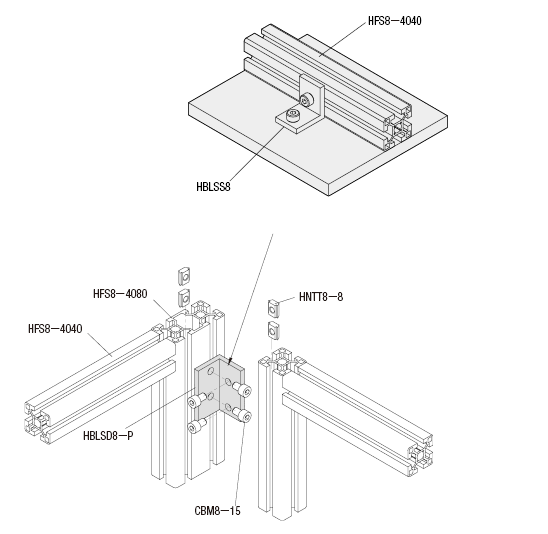

App. Example
■Features of HBLSD8-P (Thin Bracket Hole Position)
Brackets with staggered screw mounting holes.
Since the screws do not interfere with each other, each of the bracket side faces can be easily assembled vertically with the mating extrusion side face through the extrusion slot.
| Product Name | Part Number Example |
|---|---|
| Thin Brackets | HBLSS8-SET |
| Aluminum Extrusion | HFS8-4040 |
| Product Name | Part Number Example |
|---|---|
| Thin Brackets | HBLSD8-P-SET |
| Aluminum Extrusion | HFS8-4040 |
| Aluminum Extrusion | HFS8-4080 |
Customers' Opinions
- This bracket has expanded the choice of fastening method.
- I would like to buy it again because the price is lower than similar products from other manufacturers.
- Because if its thin shape, the appearance of the tightening section is neat. I am satisfied with that.
Technical Information
■How to Specify Allowable Load of Bracket
Allowable Load here means the load under which the bracket can stays at its position (without fracturing or sliding), after all of its mounting holes are fixed with screws.
■Perpendicularity
Perpendicularity of Extruded Brackets is manufactured within ±1° tolerance based on JIS Standard H4100 Special Grade.
■Mechanical Properties of Aluminum Extrusions (JIS standard as reference)
| Material (JIS Symbol) | A6N01SS-T5 |
|---|---|
| Tensile Strength (N/mm2) | 245 or more |
| Yield Stress (N/mm2) | 205 or more |
| Young's Modulus (N/mm2) | 69972 |
| Brinell Hardness (HB) | 88 |
| Surface Treatment | Anodize 9 µm or more |
Similar Products
■8 Series (Slot Width 10 mm) - For 1 Slot, Extruded Thick Brackets
| Product Name | Thin Brackets | Thick Brackets | Ultra Thick Brackets | Thick Brackets / Triangle Brackets | Offset Brackets | Unequal Sided Brackets | Brackets for Connecting Different Sizes of Extrusions Brackets |
|---|---|---|---|---|---|---|---|
| Product Photo |
|
|
|
|
|
|
|
| Features | The brackets do not protrude from extrusion widths when used to cross connect extrusions. Suitable for use in limited space. | Made of the same material as aluminum extrusions with anodizing. Suitable when appearance well balanced with the extrusions is desired. | Numbers of screws are the same as those of thick brackets. Extrusions can be connected more securely. | Two mounting holes are provided on one side. Extrusions can be connected more securely with 4 screws. | Hole positions are offset. Can be combined with plates of 3 mm and 5 mm thickness when mounting plates on the side. | The vertical and horizontal lengths are unequal to each other. Usable where space is narrow. | Staggered mounting holes. Brackets to connect 40 and 30 square Extrusions. |
| Allowable Load | 1666 | 2058 | 2058 | 3087 | 2058 | 2572 | — |
| Representative models | This Product | NBLTS8 | HBLUS8 | HBLTSW8 (Thick Type) | HBLTH8 | HBLTF8 | HBLTS8-6L |
| HBKTST8 (Perpendicularly Machined) | HBKUS8 (Perpendicularly Machined) | HBLDSWT8 (Triangle) |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Environmentally Friendly | Material Details | Compatible Extrusion Width (mm) | Surface Treatment | Extrusion Series | Extrusion Size | Bracket Type | Mounting Hole Alteration for Covers | Accessory | Applicable Screws | Number of Extrusion Connection Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 11.92 | 1 Piece(s) | Available | 1 Day(s) | 10 | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | Not Provided | M8 Screws | 4 | |
MYR 11.10 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | 80 | Anodizing | HFS | for 40・80 | Thin BracketsChangeable Hole Position Type | N/A | N/A | M8 bolt | 4 | |
MYR 20.90 | 1 Piece(s) | Available | 4 Day(s) or more | - | RoHS compliant (10 substances) | A6N01SS-T5 | 80 | Anodizing | - | for 40・80 | Thin BracketsChangeable Hole Position Type | N/A | SEC (Captive washer bolt / nut set) | M8 bolt | 4 | |
MYR 20.90 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | A6N01SS-T5 | 80 | Anodizing | - | for 40・80 | Thin BracketsChangeable Hole Position Type | N/A | SEP (Bolt / post-assembly insertion spring nut set) | M8 bolt | 4 | |
MYR 20.90 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | A6N01SS-T5 | 80 | Anodizing | - | for 40・80 | Thin BracketsChangeable Hole Position Type | N/A | SET (Bolt / nut set) | M8 bolt | 4 | |
MYR 20.90 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | A6N01SS-T5 | 80 | Anodizing | - | for 40・80 | Thin BracketsChangeable Hole Position Type | N/A | SEU (Bolt / pre-assembly insertion spring nut set) | M8 bolt | 4 | |
MYR 20.90 | 1 Piece(s) | Available | 4 Day(s) or more | - | RoHS compliant (10 substances) | A6N01SS-T5 | 80 | Anodizing | - | for 40・80 | Thin BracketsChangeable Hole Position Type | N/A | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M8 bolt | 4 | |
MYR 20.90 | 1 Piece(s) | Available | 4 Day(s) or more | - | RoHS compliant (10 substances) | A6N01SS-T5 | 80 | Anodizing | - | for 40・80 | Thin BracketsChangeable Hole Position Type | N/A | SST (Stainless steel bolt / nut set) | M8 bolt | 4 | |
MYR 20.90 | 1 Piece(s) | Available | 4 Day(s) or more | - | RoHS compliant (10 substances) | A6N01SS-T5 | 80 | Anodizing | - | for 40・80 | Thin BracketsChangeable Hole Position Type | N/A | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M8 bolt | 4 | |
MYR 30.31 | 1 Piece(s) | Available | 6 Day(s) | 10 | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SEC (Screws with Captured Washers and Nuts Set) | M8 Screws | 4 | |
MYR 25.46 | 1 Piece(s) | Available | 6 Day(s) | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SEP (Screws, Post-Assembly Insertion Spring Nuts Set) | M8 Screws | 4 | |
MYR 23.03 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SET (Screws, Nuts Set) | M8 Screws | 4 | |
MYR 25.46 | 1 Piece(s) | Available | 6 Day(s) | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SEU (Screws, Pre-Assembly Insertion Spring Nuts Set) | M8 Screws | 4 | |
MYR 27.88 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SSP (Set of Stainless Steel Screw and Post-assy. Insertion Spring Nut) | M8 Screws | 4 | |
MYR 23.03 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SST (Set of Stainless Steel Screws and Nuts) | M8 Screws | 4 | |
MYR 32.73 | 1 Piece(s) | Available | 6 Day(s) | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SSU (Set of Stainless Steel Screws and Pre-Assembly Insertion Spring Nuts) | M8 Screws | 4 | |
MYR 5.91 | 1 Piece(s) | Available | 2 Day(s) | 10 | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | Not Provided | M8 Screws | 2 | |
MYR 14.54 | 1 Piece(s) | Available | 6 Day(s) | 10 | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SEC (Screws with Captured Washers and Nuts Set) | M8 Screws | 2 | |
MYR 13.34 | 1 Piece(s) | Available | 6 Day(s) | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SEP (Screws, Post-Assembly Insertion Spring Nuts Set) | M8 Screws | 2 | |
MYR 10.91 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SET (Screws, Nuts Set) | M8 Screws | 2 | |
MYR 13.34 | 1 Piece(s) | Available | 6 Day(s) | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SEU (Screws, Pre-Assembly Insertion Spring Nuts Set) | M8 Screws | 2 | |
MYR 13.34 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SSP (Set of Stainless Steel Screw and Post-assy. Insertion Spring Nut) | M8 Screws | 2 | |
MYR 10.91 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SST (Set of Stainless Steel Screws and Nuts) | M8 Screws | 2 | |
MYR 15.76 | 1 Piece(s) | Available | 6 Day(s) | - | - | - | - | Clear Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SSU (Set of Stainless Steel Screws and Pre-Assembly Insertion Spring Nuts) | M8 Screws | 2 | |
MYR 10.28 | 1 Piece(s) | Available | 18 Day(s) | 10 | - | - | - | Black Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | Not Provided | M8 Screws | 2 | |
MYR 18.87 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | - | Black Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SEP (Screws, Post-Assembly Insertion Spring Nuts Set) | M8 Screws | 2 | |
MYR 16.22 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | - | Black Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SET (Screws, Nuts Set) | M8 Screws | 2 | |
MYR 18.87 | 1 Piece(s) | Available | 4 Day(s) or more | - | - | - | - | Black Anodize | HFS | For 40 and 80 | Thin Brackets | Not Provided | SEU (Screws, Pre-Assembly Insertion Spring Nuts Set) | M8 Screws | 2 |
