Pivot Pins - D-Cut

[Specification expansion]
Added electroless nickel plating.
Added hard chrome plating with excellent wear resistance.
[Features]
Both end chamfers provide strong rotation prevention.

Part Number

Configured Part Number is shown.

Drawing/Specifications
3D Preview
Part Numbers
More Information
Catalog

[ ! ] There are identification grooves on the side of CLSW and PCLSW to be distinguished from Hardened Type.
[!] This type may have centering holes depending on dimensions.
[ ! ] L Dimension Tolerance conforms to JIS B 0405 Class m.

Type	[M] Material	[H] Hardness	[S] Surface Treatment
CLSW	S45C Equivalent	—	Black Oxide
CLSWH		40 to 45HRC	Black Oxide
PCLSW		—	Electroless Nickel Plating
PCLSWH		40 to 45HRC	Electroless Nickel Plating
GCLSW		Plating Hardness 750 HV or more	Hard Chrome Plating
SCLSW	SUS304	—	—
SCLSWH	SUS440C or 13Cr Stainless Steel	45 to 50HRC	—
GSCLSWH	SUS440C or 13Cr Stainless Steel	45 to 50HRC Plating Hardness 750 HV or more	Hard Chrome Plating

Specification Table

Part Number	—	L	—	F	—	T
CLSWH15 SF−CLSWH15	— —	120.5 120.5	— —	F30 F30	— —	T30 T30

D Tolerance (g6)
4 to 6	−0.004 −0.012
8·10	−0.005 −0.014
12 to 16	−0.006 −0.017
20·25	−0.007 −0.020

Part Number		L 0.1 mm Increments	1 mm Increments		N
Type	D		F	T
CLSW CLSWH PCLSW PCLSWH GCLSW SCLSW SCLSWH GSCLSWH	4	10.0 to 70.0	2 ≤ F ≤ 20	2 ≤ T ≤ 20	0.5
	5	10.0 to 100.0
	6	10.0 to 150.0	2 ≤ F ≤ 30	2 ≤ T ≤ 30	1
	8
	10	15.0 to 150.0
	12	15.0 to 200.0	5 ≤ F ≤ 30	5 ≤ T ≤ 30
	13	20.0 to 200.0
	14
	15
	16	20.0 to 200.0			2
	20
	25

[ ! ] F + T ≤ L [ ! ] SCLSWH may be discolored by hardening.

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
CLSW4-[10-50/0.1]-F[2-20/1]-T[2-20/1]
CLSW5-[10-60/0.1]-F[2-20/1]-T[2-20/1]
CLSW6-[10-100/0.1]-F[2-30/1]-T[2-30/1]
CLSW8-[10-100/0.1]-F[2-30/1]-T[2-30/1]
CLSW10-[15-100/0.1]-F[2-30/1]-T[2-30/1]
CLSW12-[15-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW13-[25-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW14-[25-200/0.1]-F[5-30/1]-T[5-30/1]
CLSW15-[25-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW16-[20-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW20-[30-200/0.1]-F[5-40/1]-T[5-40/1]
CLSW25-[30-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH4-[10-50/0.1]-F[2-20/1]-T[2-20/1]
CLSWH5-[10-60/0.1]-F[2-20/1]-T[2-20/1]
CLSWH6-[10-100/0.1]-F[2-30/1]-T[2-30/1]
CLSWH8-[10-100/0.1]-F[2-30/1]-T[2-30/1]
CLSWH10-[15-100/0.1]-F[2-30/1]-T[2-30/1]
CLSWH12-[15-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH13-[25-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH14-[25-200/0.1]-F[5-30/1]-T[5-30/1]
CLSWH15-[25-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH16-[30-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH20-[30-200/0.1]-F[5-40/1]-T[5-40/1]
CLSWH25-[30-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW4-[10-50/0.1]-F[2-20/1]-T[2-20/1]
SCLSW5-[10-60/0.1]-F[2-20/1]-T[2-20/1]
SCLSW6-[10-100/0.1]-F[2-30/1]-T[2-30/1]
SCLSW8-[10-100/0.1]-F[2-30/1]-T[2-30/1]
SCLSW10-[15-100/0.1]-F[2-30/1]-T[2-30/1]
SCLSW12-[15-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW13-[25-200/0.1]-F[5-30/1]-T[5-30/1]
SCLSW14-[25-200/0.1]-F[5-30/1]-T[5-30/1]
SCLSW15-[25-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW16-[30-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW20-[30-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSW25-[30-200/0.1]-F[5-40/1]-T[5-40/1]
SCLSWH4-[10-70/0.1]-F[2-20/1]-T[2-20/1]

Standard Unit Price	Minimum order quantity	Days to Ship	RoHS	Shaft Dia. D (mm)	Characteristics/Applications	Material	Hardness	Surface Treatment	Material Details	Material Detail	L Dimension (mm)	Number of Chamfering Positions	F (mm)	T (mm)
-	1 Piece(s)	6 Day(s)	10	4	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	10 ～ 50	2 Places	2 ～ 20	2 ～ 20
-	1 Piece(s)	6 Day(s)	10	5	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	10 ～ 60	2 Places	2 ～ 20	2 ～ 20
-	1 Piece(s)	6 Day(s)	10	6	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	10 ～ 100	2 Places	2 ～ 30	2 ～ 30
-	1 Piece(s)	6 Day(s)	10	8	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	10 ～ 100	2 Places	2 ～ 30	2 ～ 30
-	1 Piece(s)	6 Day(s)	10	10	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	15 ～ 100	2 Places	2 ～ 30	2 ～ 30
-	1 Piece(s)	6 Day(s)	10	12	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	15 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	13	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	25 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	14	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	25 ～ 200	2 Places	5 ～ 30	5 ～ 30
-	1 Piece(s)	6 Day(s)	10	15	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	25 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	16	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	20 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	20	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	30 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	7 Day(s)	10	25	Not Applicable	Steel	Not Spec-designed	Black Oxide	S45C Equivalent	S45C Equivalent	30 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	4	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	10 ～ 50	2 Places	2 ～ 20	2 ～ 20
-	1 Piece(s)	6 Day(s)	10	5	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	10 ～ 60	2 Places	2 ～ 20	2 ～ 20
-	1 Piece(s)	6 Day(s)	10	6	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	10 ～ 100	2 Places	2 ～ 30	2 ～ 30
-	1 Piece(s)	6 Day(s)	10	8	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	10 ～ 100	2 Places	2 ～ 30	2 ～ 30
-	1 Piece(s)	6 Day(s)	10	10	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	15 ～ 100	2 Places	2 ～ 30	2 ～ 30
-	1 Piece(s)	6 Day(s)	10	12	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	15 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	13	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	25 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	14	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	25 ～ 200	2 Places	5 ～ 30	5 ～ 30
-	1 Piece(s)	6 Day(s)	10	15	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	25 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	16	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	30 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	20	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	30 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	7 Day(s)	10	25	Not Applicable	Steel	Hardness Requirement	Black Oxide	S45C Equivalent	S45C Equivalent	30 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	4	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	10 ～ 50	2 Places	2 ～ 20	2 ～ 20
-	1 Piece(s)	6 Day(s)	10	5	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	10 ～ 60	2 Places	2 ～ 20	2 ～ 20
-	1 Piece(s)	6 Day(s)	10	6	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	10 ～ 100	2 Places	2 ～ 30	2 ～ 30
-	1 Piece(s)	6 Day(s)	10	8	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	10 ～ 100	2 Places	2 ～ 30	2 ～ 30
-	1 Piece(s)	6 Day(s)	10	10	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	15 ～ 100	2 Places	2 ～ 30	2 ～ 30
-	1 Piece(s)	6 Day(s)	10	12	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	15 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	13	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	25 ～ 200	2 Places	5 ～ 30	5 ～ 30
-	1 Piece(s)	6 Day(s)	10	14	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	25 ～ 200	2 Places	5 ～ 30	5 ～ 30
-	1 Piece(s)	6 Day(s)	10	15	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	25 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	16	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	30 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	6 Day(s)	10	20	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	30 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	7 Day(s)	10	25	Corrosion Resistant / Chemical Resistant / Non-magnetic / Heat Resistance	Stainless Steel	Not Spec-designed	Not Provided	SUS304 Equivalent	SUS304 (Equivalent)	30 ～ 200	2 Places	5 ～ 40	5 ～ 40
-	1 Piece(s)	5 Day(s) or more	-	4	Corrosion Resistant / Chemical Resistant	Stainless Steel	Hardness Requirement	Not Provided	SUS440C ot 13Cr Class Stainless Steel	SUS440C or 13Cr Stainless Steel	10 ～ 70	2 Locations	2 ～ 20	2 ～ 20

More Information

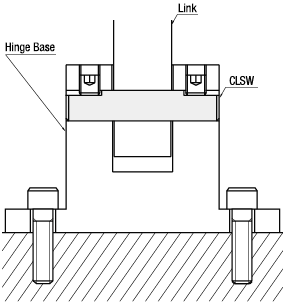

App. Example

Product TOP

Basic Information

Environmentally friendly	RoHS Compliant (10 Substances)	Mounting Method	Set Screw (Set Screw Flat, D-Cut)	Basic Shape	Straight
Type	L Dimension Configurable	Hex Socket	N/A

Configure

37 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Shaft Dia. D(mm)
4

5

6

8

10

12

13

14

15

16

20

25
Clear
Characteristics/Applications
Corrosion Resistant / Chemical Resistant

Non-magnetic

Heat Resistance

Not Applicable
Clear
Material
- Steel
- Stainless Steel
Clear
Hardness
- Not Spec-designed
- Hardness Requirement
Clear
Surface Treatment
- Not Provided
- Black Oxide
Clear
Material Details
- S45C Equivalent
- SUS304 Equivalent
- SUS440C ot 13Cr Class Stainless Steel
Clear
Material Detail
S45C Equivalent

SUS304 (Equivalent)

SUS440C or 13Cr Stainless Steel
Clear
L Dimension(mm)
[10-200/0.1mm Unit(s)]
Clear
Number of Chamfering Positions
- 2 Locations
- 2 Places
Clear
F(mm)
[2-40/1mm Unit(s)]
Clear
T(mm)
[2-40/1mm Unit(s)]
Clear
type
- CLSW
- CLSWH
- SCLSW
- SCLSWH
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

5 Day(s) or Less

6 Day(s) or Less

7 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
