Miniature Linear Guides - Short Blocks with Dowel Holes, Light Preload

Miniature Linear Guides - Short Blocks with Dowel Holes, Light Preload
These linear guides or linear slides are factory automation components. They offer a wide variety of sizes to choose from.
[Feature]
● Rail Length Minimum/Maximum (mm.): 35 and 630
● Assembly Height (mm.):8, 10, 13 and 16
● Block Type : Short Block with Dowel Holes
● Material: Stainless Steel 56HRC
[Application]
It is used in a variety of machines such as CNC machines, 3D printers, measuring instruments, and so on.

(i)Caution

We will stop the sale of Carbon Steel Miniature Linear Guide in 2021.
End of Sale Notification for MISUMI Carbon Steel Miniature Linear Guide Products
Delivery times for some of our products may be delayed as national government authorities have imposed limit of capacity at our production sites.

Part Number

Configured Part Number is shown.

Type (Part Number)

Drawing

Specification / Dimensions Table

Basic Load Rating, etc.

Alterations (Optional)

Type (Part Number)

Surface Treatment Material (Hardness)	Rail Length Type 1	Number of Blocks 2	Preload/Accuracy A	Lubrication Unit (MX) Equipped / Not Equipped B	Height (H) C	Grease D 3
			Light Preload
			High Grade
No Surface Treatment Stainless Steel [SUS440C Equivalent] (56HRC or more)	Standard length (Selectable)	1	SSEBSN	Blank: None -MX: Provided	8 10 13 16	Blank: Standard G: Grease G L: Grease L Y: Grease Y H: Grease H
	Standard length (Selectable)	2	SSE2BSN
	1 mm increments (Dimension Configurable)	1	SSEBSNL
	1 mm increments (Dimension Configurable)	2	SSE2BSNL
Low Temperature Black Chrome Plating Stainless Steel [SUS440C Equivalent] (56HRC or more)	Standard length (Selectable)	1	RSEBSN	None
	Standard length (Selectable)	2	RSE2BSN
	1 mm increments (Dimension Configurable)	1	RSEBSNL
	1 mm increments (Dimension Configurable)	2	RSE2BSNL

1If the desired rail length is not available in the standard length (selectable), please specify the length in 1 mm increments (dimension configurable).

2If a 3- to 4-block product is desired, please select a part number for a 1-block product and specify "B3 (3 blocks)" or "B4 (4 blocks)" for alterations.

3*Only standard grease is available for the MX (with lubrication unit) type.

[ ! ] Heat resistant temperature is -20 to 80°C.
[ NG ] Blocks and rails cannot be purchased separately.

Part Number Configuration

Example: [Rail Length Type] 1 mm increments, [Number of Blocks] 2, [Accuracy/Preload] Light Preload, High Grade, [MX] Provided, [Height] 10, [Grease] Standard Grease

Type	Height H	Grease	ー	Rail Length L	ー	Alterations
A B	C	D
SSEBSN	10		ー	275			（SSEBSN10-275）
SSEBSNL-MX	10		ー	271	ー	MC	（SSEBSNL-MX10-271-MC）
RSE2BSNL	10	G	ー	512	ー	MC	（RSE2BSNL10G-512-MC）

Drawing

[ ! ] For L Dimension Configurable Type, G dimensions differ from those shown in the table below.
[ NG ] Blocks and rails cannot be purchased separately.

■L Dimension　Unit：(mm)
Tolerance

L Dimension Range	Tolerance
25 ≤ L ≤ 400	0 -0.8
25 ≤ L ≤ 400	0 -0.8
400 < L ≤ 1000	0 -1.0
400 < L ≤ 1000	0 -1.0

■H/W₂ Dimensional Accuracy

Type	Accuracy Standards	Assembly Height (H)	Precision (μm)
			Precision Grade	High Grade		Standard Grade
				No Surface Treatment	Low Temperature Black Chrome Plating
				No Surface Treatment	Low Temperature Black Chrome Plating
Miniature Linear Guide	Height H Tolerance	6 to 20	±10	±20	+30 -20	±20
	Pair Variation of Height H		7	15	15	40
	Width W₂ Tolerance		±15	±25	±25	±25
	Pair Variation of Width W₂		10	20	20	40

■Tolerances of Other Symbols

Dimension Range		Tolerance (mm)
Over	or Less	Tolerance (mm)
0.5	3	±0.1
3	6	±0.1
6	30	±0.2
30	120	±0.3
120	400	±0.5
400	1000	±0.8
1000	2000	±1.2

Compliant with JIS B 0405-1991
Class m (intermediate)

[ ! ]The precision of low temperature black chrome plated Miniature Linear Guides is as shown above.
The sliding resistance is higher than that of Standard Type: approx. 1.2 N or lower.

Specification Table

Part Number			L 4	Block Dimensions							Dowel Holes		Rail Dimensions
Type	MX	H		W	L₁	B	S × ℓ	L₂	K	Cb	N	(ℓ₁)	W₁	W₂	H₁	Ca	Counterbored Hole	F	G 5
Type	MX	H		W	L₁	B	S × ℓ	L₂	K	Cb	N	(ℓ₁)	W₁	W₂	H₁	Ca	d₁ × d₂ × h	F	G 5
1 Block SSEBSN SSEBSNL 2 blocks SSE2BSN SSE2BSNL 1 Block RSEBSN RSEBSNL 2 blocks RSE2BSN RSE2BSNL	—	8	40 to 310 (55)	17	19.6	12	M2 × 2.5	9.6	6.5	0.3	8.5	2	7	5	4.7	0.3	2.4 × 4.2 × 2.3	15	5
	Blank: None -MX: Provided	10	35 to 635 (75)	20	22.9	15	M3 × 3	11.9	7.8	0.3	10	2.5	9	5.5	5.5	0.3	3.5 × 6 × 3.5	20	7.5
		13	45 to 970 (95)	27	27	20	M3 × 3.5	13	10	0.5	13.5	3	12	7.5	7.5	0.5	3.5 × 6 × 4.5	25	10
		16	70 to 990 (110)	32	32.7	25	M3 × 4	17.7	12	0.5	16	4	15	8.5	9.5	0.5	3.5 × 6 × 4.5	40	15

4Dimensions in ( ) are for 2 Block Type.

5For L Dimension Configurable Types, both ends of the rail are evenly cut. G dim. resulting from this cutting process will differ from those indicated on the above table.

!H8 comes with cap bolts (M2 × 6).

!Correctly match the datum planes (the side with the straight grooves) of both the rail and block.

Standard Rail Length (Selectable) List

The table below lists the standard rail lengths for each size. Please select the rail length from here.
Lengths not listed in the table below can be custom specified in 1 mm increments.

Height	Rail Length
(H)	(L)
8	(40)	55	70	85	100	115	130	145	160	175	190	205	220	235	250	265	280	295	310
10	(35)	(55)	75	95	115	135	155	175	195	215	235	255	275	295	315	335	355	375	395	415	435	455	475	495	515	535	555	575	595	615	635
13	(45)	(70)	95	120	145	170	195	220	245	270	295	320	345	370	395	420	445	470	495	520	545	570	595	620	645	670	695	720	745	770	795	820	845	870	895	920	945	970
16	(70)	110	150	190	230	270	310	350	390	430	470	510	550	590	630	670	710	750	790	830	870	910	950	990

! The dimensions in ( ) are not available for the standard 2-block type.

Basic Load Rating, Allowable Static Moment, Mass, Friction Resistance (Required Thrust), Sliding Resistance (Seal Resistance)

kgf = N × 0.101972

Height (H)	Basic Load Rating 6		Allowable Static Moment						Mass
	C (Dynamic) kN	Co (Static) kN	Block 1 pc.			Block 2 pcs. in close contact 7			Block kg	Guide Rail kg/m
	C (Dynamic) kN	Co (Static) kN	M_A N⋅m	M_B N⋅m	M_C N⋅m	M_A N⋅m	M_B N⋅m	M_C N⋅m	Block kg	Guide Rail kg/m
8	0.79	1.27	1.9	1.6	4.6	12.4	12.4	9.2	0.008	0.19
10	1.16	1.68	3.1	2.6	7.9	23.4	23.4	15.8	0.015	0.31
13	1.63	2.38	5.2	4.4	14.8	38.1	38.1	29.6	0.025	0.61
16	3.08	4.23	12.3	10.3	32.6	85.4	85.4	65.2	0.05	1.02

6The basic load rating is the same for all four directions (radial, reverse-radial, and lateral directions) relating to blocks. Can be used in any orientation.

7The allowable static moment when two blocks are in close contact is not a guaranteed value but a reference value.

The guideline for the allowable load and allowable moment of the linear guide is the value obtained by dividing each value (above table) by the static safety factor fs (below table).
[Example] Allowable load (kN) for H10 under normal driving conditions: 1.68/2 = 0.84 (Approx. 86 kg)
The actual friction resistance (required thrust) when using a linear guide will vary depending on the load and other factors.

Static Safety Factor (Lower Limits of fs)

Condition of Use	Lower Limits of fs
For normal operating condition	1 to 2
When smooth running performance is required	2 to 4
When there is vibration or impact	3 to 5

Allowable Load (N) ≤ Co/fs
Allowable Moment (N⋅m) ≤ (M_A, M_B, M_C)/fs

fs: Static Safety Factor Co: Basic Static Load Rating
M_A, M_B, M_C: Allowable Static Moment (N⋅m)

Friction Resistance (Required Thrust Force)

・In linear guides, the rolling elements perform rolling motion, resulting in lower frictional resistance compared to sliding guides.
However, this can vary depending on the applied load, speed, and the characteristics of the lubricant.
Especially when a moment load is applied or preload is applied, friction resistance increases. Although seal resistance varies depending on the seal lip press-fit allowance
and the condition of the lubricant, it is not proportional to load and always shows a constant value. Friction resistance is obtained by the following formula.

F＝μ・w＋f

F: Friction Resistance (N)
μ: Dynamic Friction Coefficient
w: Load (N)
f: Sliding Resistance (Seal Resistance)

Dynamic Friction Coefficient

Type	Dynamic Friction Coefficient (μ)
Miniature Linear Guide	0.004 to 0.006
Linear Guides for Medium Load	0.002 to 0.003

Calculation Example

Condition: Miniature linear guide (standard rail) assembly height (H): 10: Sliding resistance (seal resistance): 0.5 (N)
Dynamic Friction Coefficient (μ): 0.005
Load: 150 (N)

F (Friction Resistance)＝0.005×150+0.5＝1.25(N)

Mounting and Handling
■Datum Plane and Mounting Direction

Datum plane has the Datum Plane Mark (groove) on the block and rail (Fig. A). Be sure to match the datum planes for use.
The mounting direction shown in Fig. B is acceptable. All the basic load ratings are same.

Fig. A

Fig. B

■Precautions for Use
[ ! ]Blocks are equipped with a retainer to prevent balls from derailing (wires).
[ ! ]Radial clearances and accuracies are not guaranteed if the blocks and rails are interchanged from the original set combinations.
[ ! ]Straight grooves are provided on datum planes. Be sure to match the datum planes for use.
[ ! ]Rails cannot be connected end to end.
[ ! ]The accuracy of Linear Guide is guaranteed after mounting the rail (after it is fastened with screws on the rail and pushing it onto the datum plane).
Minor bending of the rail will be adjusted by being secured and will not affect the performance.

■About Grease

Filled with a standard grease: lithium soap based grease (Multemp Grease PS2 by KYODO YUSHI) before shipment.
The standard grease when selecting the lubrication unit MX is (ENEOS Corporation Tufflix MP2).
Greasing with a different brand of grease is not recommended. Please use the same brand of grease.
Apply grease directly to the rail. After applying, move the block to let the grease absorb.

■Grease fitting position when selecting lubrication unit MX　

The miniature type does not come with a grease fitting or greasing hole.
When lubrication unit MX is selected: When the datum plane is in front, the grease fitting is attached in the direction shown in the diagram below.

■Lubrication Unit

Advantages of Lubrication Unit MX:
The oil-impregnated porous core part has been built into the product.
Provides long term maintenance-free operation.
Reduces maintenance cost.
Most suitable where the design does not allow lubrication.

Alterations

Code

Alterations

Specifications

Notes

Change rail counterbore holes to tapped holes

·Changes the guide rail mounting holes from counterbored holes to tapped holes.

! Not applicable for H dim. 8 ≥ 131, H dim. 10 ≥ 276, H dim. 13 ≥ 471, H dim. 16 ≥ 671, or H dim. 20 ≥ 701
! See the table below for the tapped hole dimensions after change.

Dimension H	Tapped Hole Dimensions
8	M 3
10	M 4
13	M 4
16	M 5

LLC
RLC

LLC: Left End Cut
RLC: Right End Cut

·Cuts rail ends.
·Rails are cut with the engraved side as front (datum plane as back).
(as shown in the image on the left)
·Please refer to the table below for the length of the rail to be cut.

Dimension H	L Cut	N
10	2.5	5
13	5
16	10

!The overall length will be shortened by the amount of cutting.
Example: The L dimension of SSEBSN13-95-LLC is 90 mm.
!Applicable only to Selectable Type (standard rail length).
!Not applicable to H8.
!Not applicable to L35 of H10 and L45 of H13.

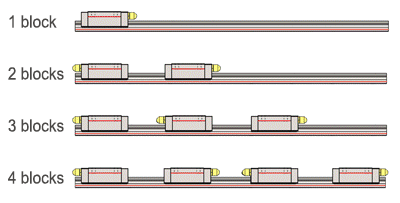

B3
B4

B3: Additional Block (Total 3 pcs.)
B4: Additional Block (Total 4 pcs.)

3-Block Specifications

4-Block Specifications

·It will be shipped with 3 (4) blocks installed.
·There is a minimum length limit for the L dimension (rail length).
Please refer to the table below "Shortest Selectable Rail Lengths for B3/B4."

!Please specify the part number for one block.
(× SSE2BSN10-215-B4)

■Shortest Selectable Rail Lengths for B3/B4

H	B3 (3 blocks)	B4 (4 blocks)
8	85	100
10	95	135
13	120	145
16	150	190

App. Example

Short Block

Standard Block

- Installation Examples -
Conventional Type	With Dowel Holes

Positioning on the basis of plate end face	Positioning using a dowel hole

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
SSE2BSN8-[70,85,100,115,130]
SSE2BSN8G-[55,70,85,100,115,130,145,160,175,190,205,220,235,250,265,280,295,310]
SSE2BSN8L-[55,70,85,100,115,130,145,160,175,190,205,220,235,250,265,280,295,310]
SSE2BSN10-[75,95,115,135,155,175,195,215,235,255,275,295,315,335,355,375,395,415,435,455,475,495,515,535,555,575,595,615,635]
SSE2BSN10G-[95,115,135,155,175,195,215,235,255,275,295,315,335,355,375,395,415,435,455,475,495,515,535,555,575,595,615,635]
SSE2BSN10L-[95,115,135,155,175,195,215,235,255,275,295,315,335,355,375,395,415,435,455,475,495,515,535,555,575,595,615,635]
SSE2BSN13-[95,120,145,170,195,220,245,270,295,320,345,370,395,420,445,470,495,520,545,570,595,620,645,670,695,720,745,770,795,820,845,870,895,920,945,970]
SSE2BSN13G-[120,145,170,195,220,245,270,295,320,345,370,395,420,445,470,495,520,545,570,595,620,645,670,695,720,745,770,795,820,845,870,895,920,945,970]
SSE2BSN13L-[120,145,170,195,220,245,270,295,320,345,370,395,420,445,470,495,520,545,570,595,620,645,670,695,720,745,770,795,820,845,870,895,920,945,970]
SSE2BSN16-[110,150,190,230,270,310,350,390,430,470,510,550,590,630,670,710,750,790,830,870,910,950,990]
SSE2BSN16G-[110,150,190,230,270,310,350,390,430,470,510,550,590,630,670,710,750,790,830,870,910,950,990]
SSE2BSN16L-[110,150,190,230,270,310,350,390,430,470,510,550,590,630,670,710,750,790,830,870,910,950,990]
SSE2BSN-MX10-[75,95,115,135,155,175,195,215,235,255,275,295,315,335,355,375,395,415,435,455,475,495,515,535,555,575,595,615,635]
SSE2BSN-MX13-[95,120,145,170,195,220,245,270,295,320,345,370,395,420,445,470,495,520,545,570,595,620,645,670,695,720,745,770,795,820,845,870,895,920,945,970]
SSE2BSN-MX16-[110,150,190,230,270,310,350,390,430,470,510,550,590,630,670,710,750,790,830,870,910,950,990]
SSE2BSNL8-[56-309/1]
SSE2BSNL8G-[66-309/1]
SSE2BSNL8L-[66-309/1]
SSE2BSNL10-[76-634/1]
SSE2BSNL10G-[88-634/1]
SSE2BSNL10L-[88-634/1]
SSE2BSNL13-[96-969/1]
SSE2BSNL13G-[121-969/1]
SSE2BSNL13L-[121-969/1]
SSE2BSNL16-[111-989/1]
SSE2BSNL16G-[151-989/1]
SSE2BSNL16L-[151-989/1]
SSE2BSNL-MX10-[76-634/1]
SSE2BSNL-MX13-[96-969/1]
SSE2BSNL-MX16-[111-989/1]
SSEBSN8-[40,55,70,85,100,115,130,145,160,175,190,205,220,235,250,265,280,295,310]
SSEBSN8G-[40,55,70,85,100,115,130,145,160,175,190,205,220,235,250,265,280,295,310]
SSEBSN8L-[40,55,70,85,100,115,130,145,160,175,190,205,220,235,250,265,280,295,310]
SSEBSN10-[35,55,75,85,95,100,115,130,135,155,175,195,215,235,255,275,295,315,335,355,375,395,415,435,455,475,495,515,535,555,575,595,615,635]
SSEBSN10G-[35,55,75,95,115,135,155,175,195,215,235,255,275,295,315,335,355,375,395,415,435,455,475,495,515,535,555,575,595,615,635]
SSEBSN10L-[35,55,75,95,115,135,155,175,195,215,235,255,275,295,315,335,355,375,395,415,435,455,475,495,515,535,555,575,595,615,635]
SSEBSN13-[45,70,95,120,145,170,195,220,245,270,295,320,345,370,395,420,445,470,495,520,545,570,595,620,645,670,695,720,745,770,795,820,845,870,895,920,945,970]
SSEBSN13G-[45,70,95,120,145,170,195,220,245,270,295,320,345,370,395,420,445,470,495,520,545,570,595,620,645,670,695,720,745,770,795,820,845,870,895,920,945,970]
SSEBSN13L-[45,70,95,120,145,170,195,220,245,270,295,320,345,370,395,420,445,470,495,520,545,570,595,620,645,670,695,720,745,770,795,820,845,870,895,920,945,970]
SSEBSN16-[70,85,100,110,115,130,150,190,230,270,310,350,390,430,470,510,550,590,630,670,710,750,790,830,870,910,950,990]
SSEBSN16G-[70,110,150,190,230,270,310,350,390,430,470,510,550,590,630,670,710,750,790,830,870,910,950,990]
SSEBSN16L-[70,110,150,190,230,270,310,350,390,430,470,510,550,590,630,670,710,750,790,830,870,910,950,990]
SSEBSN-MX10-[35,55,75,95,115,135,155,175,195,215,235,255,275,295,315,335,355,375,395,415,435,455,475,495,515,535,555,575,595,615,635]
SSEBSN-MX13-[45,70,95,120,145,170,195,220,245,270,295,320,345,370,395,420,445,470,495,520,545,570,595,620,645,670,695,720,745,770,795,820,845,870,895,920,945,970]
SSEBSN-MX16-[70,110,150,190,230,270,310,350,390,430,470,510,550,590,630,670,710,750,790,830,870,910,950,990]
SSEBSNL8-[41-309/1]
SSEBSNL8G-[41-309/1]
SSEBSNL8L-[41-309/1]
SSEBSNL10-[36-634/1]
SSEBSNL10G-[36-634/1]
SSEBSNL10L-[36-634/1]
SSEBSNL13-[46-969/1]
SSEBSNL13G-[46-969/1]
SSEBSNL13L-[46-969/1]
SSEBSNL16-[71-989/1]
SSEBSNL16G-[71-989/1]
SSEBSNL16L-[71-989/1]
SSEBSNL-MX10-[36-634/1]
SSEBSNL-MX13-[46-969/1]
SSEBSNL-MX16-[71-989/1]

Standard Unit Price	Minimum order quantity	Days to Ship	RoHS	Rail Length L (mm)	Rail Width W1 (mm)	Assembly Height H (mm)	Nominal Part Number	No. of Blocks (mm)	Basic Load Rating: Dynamic Load (N)	Basic Load Rating: Static Load (R)	Allowable Static Moment MA (θ)	Allowable Static Moment MB (N)	Allowable Static Moment MC (N)	Lubrication Type	L Dimension Type
-	1 Piece(s)	8 Day(s)	10	70 ～ 130	7	8	7	2	790	1270	1.9	1.6	4.6	Filled with Lithium soap based grease	Selectable Type
-	1 Piece(s)	8 Day(s)	10	70 ～ 310	7	8	7	2	790	1270	1.9	1.6	4.6	Low Dust Generation Grease (G Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	70 ～ 310	7	8	7	2	790	1270	1.9	1.6	4.6	Heat Resistant Grease (L Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	95 ～ 275	9	10	9	2	1160	1680	3.1	2.6	7.9	Filled with Lithium soap based grease	Selectable Type
-	1 Piece(s)	8 Day(s)	10	95 ～ 275	9	10	9	2	1160	1680	3.1	2.6	7.9	Low Dust Generation Grease (G Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	95 ～ 275	9	10	9	2	1160	1680	3.1	2.6	7.9	Heat Resistant Grease (L Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	95 ～ 420	12	13	12	2	1630	2380	5.2	4.4	14.8	Filled with Lithium soap based grease	Selectable Type
-	1 Piece(s)	8 Day(s)	10	120 ～ 420	12	13	12	2	1630	2380	5.2	4.4	14.8	Low Dust Generation Grease (G Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	120 ～ 420	12	13	12	2	1630	2380	5.2	4.4	14.8	Heat Resistant Grease (L Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	150 ～ 630	15	16	15	2	3080	4230	12.3	10.3	32.6	Filled with Lithium soap based grease	Selectable Type
-	1 Piece(s)	8 Day(s)	10	150 ～ 630	15	16	15	2	3080	4230	12.3	10.3	32.6	Low Dust Generation Grease (G Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	150 ～ 630	15	16	15	2	3080	4230	12.3	10.3	32.6	Heat Resistant Grease (L Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	75 ～ 395	9	10	9	2	1160	1680	3.1	2.6	7.9	Lubrication Unit	Selectable Type
-	1 Piece(s)	8 Day(s)	10	95 ～ 670	12	13	12	2	1630	2380	5.2	4.4	14.8	Lubrication Unit	Selectable Type
-	1 Piece(s)	8 Day(s)	10	110 ～ 670	15	16	15	2	3080	4230	12.3	10.3	32.6	Lubrication Unit	Selectable Type
-	1 Piece(s)	8 Day(s)	10	56 ～ 309	7	8	7	2	790	1270	1.9	1.6	4.6	Filled with Lithium soap based grease	Configurable Type
-	1 Piece(s)	8 Day(s)	10	66 ～ 309	7	8	7	2	790	1270	1.9	1.6	4.6	Low Dust Generation Grease (G Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	66 ～ 309	7	8	7	2	790	1270	1.9	1.6	4.6	Heat Resistant Grease (L Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	76 ～ 634	9	10	9	2	1160	1680	3.1	2.6	7.9	Filled with Lithium soap based grease	Configurable Type
-	1 Piece(s)	8 Day(s)	10	88 ～ 634	9	10	9	2	1160	1680	3.1	2.6	7.9	Low Dust Generation Grease (G Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	88 ～ 634	9	10	9	2	1160	1680	3.1	2.6	7.9	Heat Resistant Grease (L Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	96 ～ 969	12	13	12	2	1630	2380	5.2	4.4	14.8	Filled with Lithium soap based grease	Configurable Type
-	1 Piece(s)	8 Day(s)	10	121 ～ 969	12	13	12	2	1630	2380	5.2	4.4	14.8	Low Dust Generation Grease (G Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	121 ～ 969	12	13	12	2	1630	2380	5.2	4.4	14.8	Heat Resistant Grease (L Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	111 ～ 989	15	16	15	2	3080	4230	12.3	10.3	32.6	Filled with Lithium soap based grease	Configurable Type
-	1 Piece(s)	8 Day(s)	10	151 ～ 989	15	16	15	2	3080	4230	12.3	10.3	32.6	Low Dust Generation Grease (G Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	151 ～ 989	15	16	15	2	3080	4230	12.3	10.3	32.6	Heat Resistant Grease (L Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	76 ～ 634	9	10	9	2	1160	1680	3.1	2.6	7.9	Lubrication Unit	Configurable Type
-	1 Piece(s)	8 Day(s)	10	96 ～ 969	12	13	12	2	1630	2380	5.2	4.4	14.8	Lubrication Unit	Configurable Type
-	1 Piece(s)	8 Day(s)	10	111 ～ 989	15	16	15	2	3080	4230	12.3	10.3	32.6	Lubrication Unit	Configurable Type
-	1 Piece(s)	8 Day(s)	10	40 ～ 310	7	8	7	1	790	1270	1.9	1.6	4.6	Filled with Lithium soap based grease	Selectable Type
-	1 Piece(s)	8 Day(s)	10	40 ～ 310	7	8	7	1	790	1270	1.9	1.6	4.6	Low Dust Generation Grease (G Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	40 ～ 310	7	8	7	1	790	1270	1.9	1.6	4.6	Heat Resistant Grease (L Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	35 ～ 275	9	10	9	1	1160	1680	3.1	2.6	7.9	Filled with Lithium soap based grease	Selectable Type
-	1 Piece(s)	8 Day(s)	10	35 ～ 275	9	10	9	1	1160	1680	3.1	2.6	7.9	Low Dust Generation Grease (G Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	35 ～ 275	9	10	9	1	1160	1680	3.1	2.6	7.9	Heat Resistant Grease (L Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	45 ～ 420	12	13	12	1	1630	2380	5.2	4.4	14.8	Filled with Lithium soap based grease	Selectable Type
-	1 Piece(s)	8 Day(s)	10	45 ～ 420	12	13	12	1	1630	2380	5.2	4.4	14.8	Low Dust Generation Grease (G Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	45 ～ 420	12	13	12	1	1630	2380	5.2	4.4	14.8	Heat Resistant Grease (L Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	70 ～ 630	15	16	15	1	3080	4230	12.3	10.3	32.6	Filled with Lithium soap based grease	Selectable Type
-	1 Piece(s)	8 Day(s)	10	70 ～ 630	15	16	15	1	3080	4230	12.3	10.3	32.6	Low Dust Generation Grease (G Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	70 ～ 630	15	16	15	1	3080	4230	12.3	10.3	32.6	Heat Resistant Grease (L Type)	Selectable Type
-	1 Piece(s)	8 Day(s)	10	35 ～ 395	9	10	9	1	1160	1680	3.1	2.6	7.9	Lubrication Unit	Selectable Type
-	1 Piece(s)	8 Day(s)	10	45 ～ 670	12	13	12	1	1630	2380	5.2	4.4	14.8	Lubrication Unit	Selectable Type
-	1 Piece(s)	8 Day(s)	10	70 ～ 670	15	16	15	1	3080	4230	12.3	10.3	32.6	Lubrication Unit	Selectable Type
-	1 Piece(s)	8 Day(s)	10	41 ～ 309	7	8	7	1	790	1270	1.9	1.6	4.6	Filled with Lithium soap based grease	Configurable Type
-	1 Piece(s)	8 Day(s)	10	41 ～ 309	7	8	7	1	790	1270	1.9	1.6	4.6	Low Dust Generation Grease (G Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	41 ～ 309	7	8	7	1	790	1270	1.9	1.6	4.6	Heat Resistant Grease (L Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	36 ～ 634	9	10	9	1	1160	1680	3.1	2.6	7.9	Filled with Lithium soap based grease	Configurable Type
-	1 Piece(s)	8 Day(s)	10	36 ～ 634	9	10	9	1	1160	1680	3.1	2.6	7.9	Low Dust Generation Grease (G Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	36 ～ 634	9	10	9	1	1160	1680	3.1	2.6	7.9	Heat Resistant Grease (L Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	46 ～ 969	12	13	12	1	1630	2380	5.2	4.4	14.8	Filled with Lithium soap based grease	Configurable Type
-	1 Piece(s)	8 Day(s)	10	46 ～ 969	12	13	12	1	1630	2380	5.2	4.4	14.8	Low Dust Generation Grease (G Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	46 ～ 969	12	13	12	1	1630	2380	5.2	4.4	14.8	Heat Resistant Grease (L Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	71 ～ 989	15	16	15	1	3080	4230	12.3	10.3	32.6	Filled with Lithium soap based grease	Configurable Type
-	1 Piece(s)	8 Day(s)	10	71 ～ 989	15	16	15	1	3080	4230	12.3	10.3	32.6	Low Dust Generation Grease (G Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	71 ～ 989	15	16	15	1	3080	4230	12.3	10.3	32.6	Heat Resistant Grease (L Type)	Configurable Type
-	1 Piece(s)	8 Day(s)	10	36 ～ 634	9	10	9	1	1160	1680	3.1	2.6	7.9	Lubrication Unit	Configurable Type
-	1 Piece(s)	8 Day(s)	10	46 ～ 969	12	13	12	1	1630	2380	5.2	4.4	14.8	Lubrication Unit	Configurable Type
-	1 Piece(s)	8 Day(s)	10	71 ～ 989	15	16	15	1	3080	4230	12.3	10.3	32.6	Lubrication Unit	Configurable Type

Product TOP

Basic Information

Block Type(mm)	Short Blocks with Dowel Holes	Rail Type	Standard Rail	Set / Single Item	Set
Preload(N・m)	Light Preload	Accuracy Standards(N・m)	High Grade	Material	Stainless Steel
Ball Arrangement	Miniature Type	Retainer	N/A	Lubrication Type(mm)	Lubrication Applied
Rolling Element	Ball	Surface Treatment	none

Configure

60 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Rail Length L(mm)
35

40

45

55

70

75

85

95

100

110

115

120

130

135

145

150

155

170

175

190

195

215

220

230

235

245

255

270

275

295

310

320

345

350

370

390

395

420

430

445

470

510

550

590

630

670
[36-989/1mm Unit(s)]
Clear
Rail Width W1(mm)
7

9

12

15
Clear
Assembly Height H(mm)
8

10

13

16
Clear
Nominal Part Number
7

9

12

15
Clear
No. of Blocks(mm)
1

2
Clear
Lubrication Type
- Filled with Lithium soap based grease
- Heat Resistant Grease (L Type)
- Low Dust Generation Grease (G Type)
- Lubrication Unit
Clear
L Dimension Type
- Configurable Type
- Selectable Type
Clear
type
- SSE2BSN
- SSE2BSN-MX
- SSE2BSNL
- SSE2BSNL-MX
- SSEBSN
- SSEBSN-MX
- SSEBSNL
- SSEBSNL-MX
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

8 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Additional Products in this Category

Complementary Products

Simplified Linear Locks
MISUMI Standard Price : MYR 25.46- Days to Ship : 1 Day(s) or more
Height Adjusting Blocks for Miniature Linear Guides - Standard Rail Type
MISUMI Days to Ship : 8 Day(s) or more
Linear Guide Stopper Bolts
MISUMI Standard Price : MYR 37.96- Days to Ship : 2 Day(s) or more
Linear Guide Clamps - For Miniature Linear Guides
MISUMI Standard Price : MYR 219.43- Days to Ship : 2 Day(s) or more
Slide Guide - Rail Mounting Hole Caps【100 Pieces Per Package】
MISUMI Standard Price : MYR 148.52- Days to Ship : 2 Day(s) or more

Customers Who Viewed This Item Also Viewed

Miniature Linear Guides - Short Blocks, Light Preload / Slight Clearance
MISUMI

Days to Ship : 8 Day(s)
Miniature Linear Guides - Standard Blocks with Dowel Holes, Light Preload / Slight Clearance
MISUMI

Days to Ship : 8 Day(s)
Miniature Linear Guides - Extra Long Blocks, Light Preload / Slight Clearance
MISUMI

Days to Ship : 8 Day(s)
Miniature Linear Guides - Wide Rails - Wide Standard Blocks, Light Preload / Slight Clearance
MISUMI

Days to Ship : 8 Day(s)
Miniature Linear Guides - Heat Resistant - Short / Standard / Long Blocks, Light Preload
MISUMI

Days to Ship : 8 Day(s)
Linear Guides for Medium/Heavy Load - With Dowel Holes, Normal Clearance
MISUMI

Days to Ship : 8 Day(s)
Miniature Linear Guides - Long Blocks, Light Preload
MISUMI

Days to Ship : 8 Day(s)
Miniature Linear Guides - Wide Standard Blocks, Light Preload / Slight Clearance
MISUMI

Days to Ship : 8 Day(s)
Miniature Linear Guides - Long Blocks with Dowel Holes, Light Preload
MISUMI

Days to Ship : 8 Day(s)
Linear Guides for for Medium Load - Normal Clearance
MISUMI

Days to Ship : 4 Day(s) or more
Linear Guide Clamps - For Miniature Linear Guides
MISUMI

Standard Price : MYR 219.43-

Days to Ship : 2 Day(s) or more
Linear Guides with Low Temperature Black Chrome Plating
MISUMI

Days to Ship : 8 Day(s) or more

back next

Tech Support

Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations): Tel：(60) 3 7890 6399; 9:00am - 6:00pm (Monday - Friday)
9:00am - 1:00pm (Saturday); Technical Inquiry

How can we improve?

Miniature Linear Guides - Short Blocks with Dowel Holes, Light Preload

(i)Caution

Type (Part Number)

Drawing

Specification Table

Basic Load Rating, Allowable Static Moment, Mass, Friction Resistance (Required Thrust), Sliding Resistance (Seal Resistance)

Alterations

App. Example

Part Number

Basic Information

Configure

Specification/Dimensions

Rail Length L(mm)

Rail Width W1(mm)

Assembly Height H(mm)

Nominal Part Number

No. of Blocks(mm)

Lubrication Type

L Dimension Type

type

CAD

Days to Ship

Specify Alterations

Additional Products in this Category

Complementary Products

Customers Who Viewed This Item Also Viewed

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm
